Description

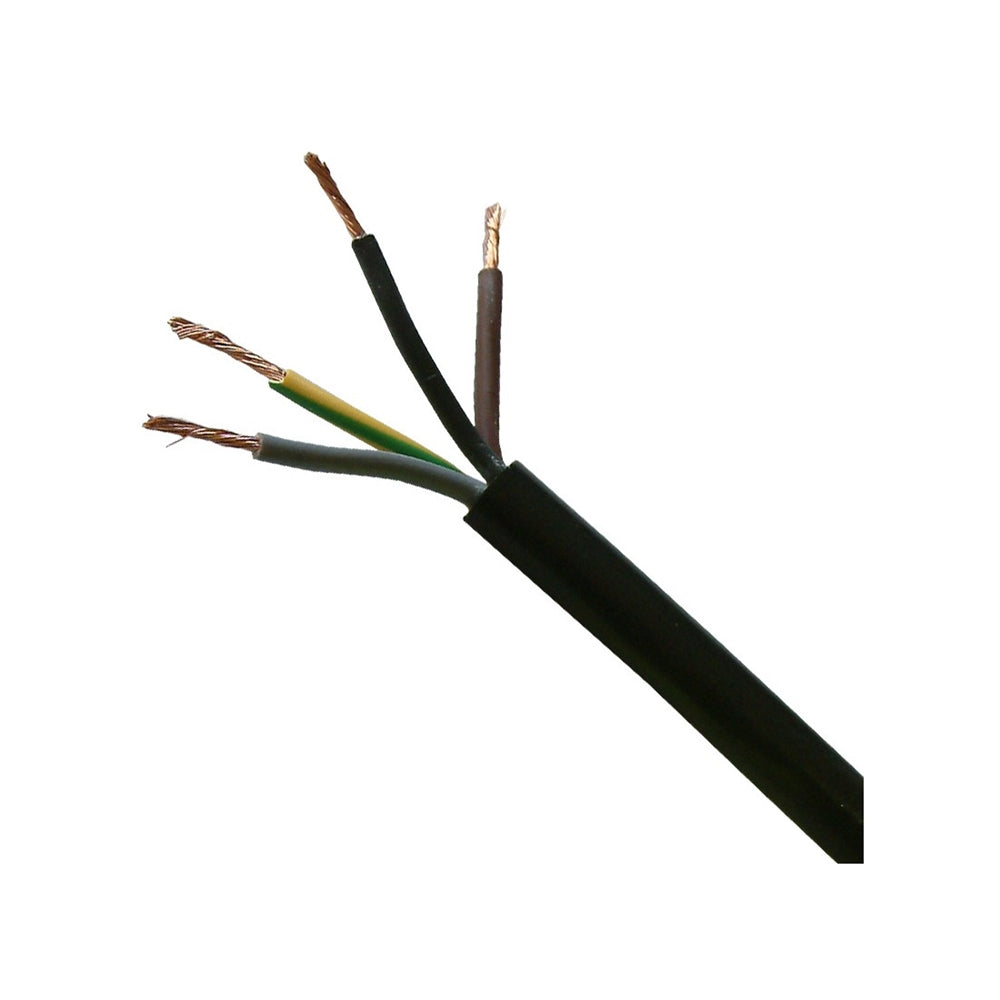

The light-duty 318-Y cable is designed for use in domestic appliances, such as those often found in kitchens and offices, with a voltage rating of 300/500V. It is suitable for use with ordinary duty portable appliances such as radios, table lamps and office equipment where the potential for mechanical stresses and mechanical damage is low.
The 318-Y range is manufactured in accordance with BS EN 50525-2-11 and European harmonised standard H05VV-F (often misspelled as HO5VVF). Outside of Europe, the H05VVF cable is often called NYMHY cable.
Technical Specification:
Voltage: 300/500V
Conductor: Class 5 Flexible Stranded Copper
Insultation: PVC (Polyvinyl Chloride)
Outer Sheath: PVC (Polyvinyl Chloride)
Cores: 4
Cross-Sectional Area (m²): 1.5
Thickness Of Insulation (mm): 0.7
Overall Diameter (mm): 9
Weight (kg): 6.7
Sheath Colour: Black
Length: 50m
Dimensions: Length: 50000mm
Weight: 6.7Kg
