Description

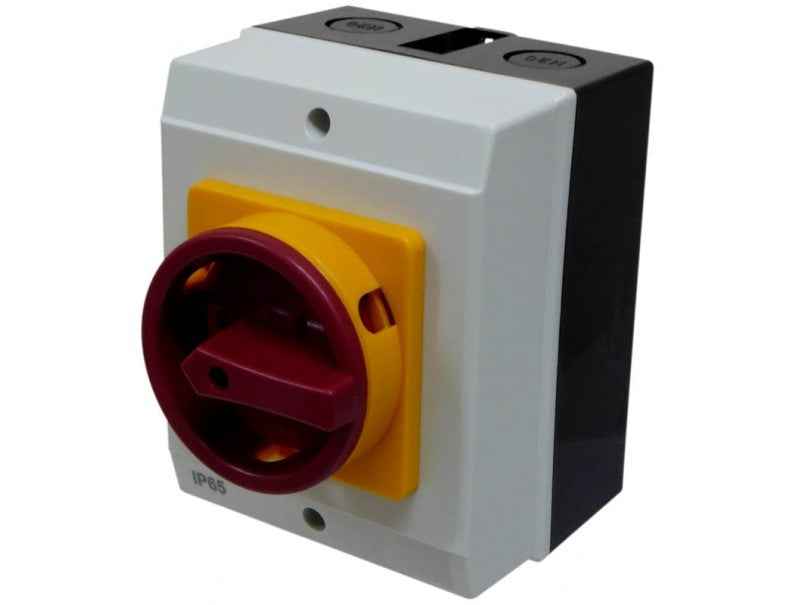

The E203P, 20 Amp 3 Pole AC 230-415V(Single Phase/Three Phase) Rotary Isolator Switch by ESR is generally used to isolate power in commercial and industrial applications such as in factories to isolate conveyor belts, in kitchens to isolate fryers and cookers and on farms to isolate meal bins etc.
Ideal for both Indoor & Outdoor use due to its IP65 Rating (Dust Tight and protected against Water Jets).
20mm Knockouts make cable access easy.
Handy Locking Mechanism while off keeps it safe from Children or Unauthorised access.
Switch interlocks with lid to prevent opening whilst in on position.
2 Screws removes cover/lid.
Comes with a High Visibility Red/Yellow Handle.
Complies to the latest relevant safety standards - BS EN60947.
Technical Specification:
- Dimensions: 125mm (Height) x 100mm (Width) x 81mm (Depth) - 116mm (Total Depth)
- Fixing Centre: 80 x 80mm
- Class: Class I
- Number of Poles: 3
- Earth Connections: 2
- Lock Facility: Yes (Padlock not supplied)
- Cover Interlock: Yes in ON position
- Construction: ABS/Polycarbonate
- IP: IP65
- Cable Entry/Knockouts: 2 x 20mm Top. 2 x 20mm Bottom
- Manufactured & Tested to: BS EN60947
Comes with a 1 Year Manufacturer's Warranty
This item is usually wired using Hi-Tuff or SWA cable.
