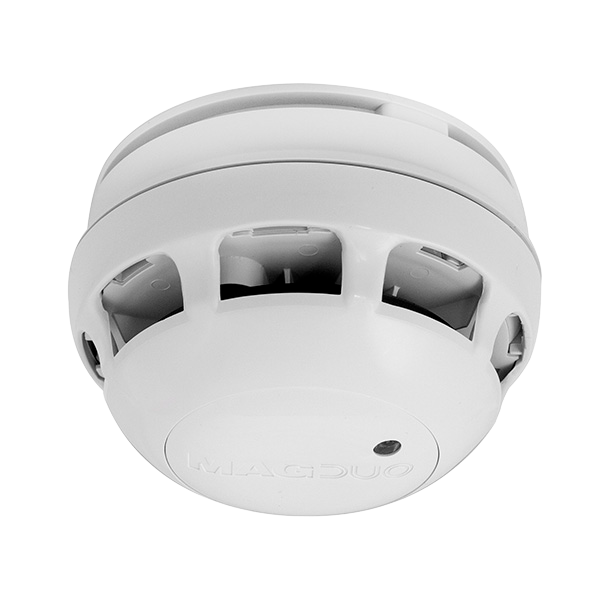

FlexiPoint Detector for Fire Detection

Save £14.43

Price:
£32.07 £46.50

Inc VAT

Stock:
Only 9 in stock
- +

Order before 2pm for same day dispatch

Description

FlexiPoint Detector for Fire Detection
7 modes of fire detection including combined smoke/heat Built-in End of Line function Self-calibration every 6 hours Continuous dust contamination monitoring Device wiring base included

Technical Specification:

Dimensions:
Diameter: 107mm
Depth: 75mm
Temperature Range:
Operating Temperature: -10°C to +50°C
Voltage Range:
Operating Voltage Range: 18V to 32V DC
Operating Current:
Quiescent: 101 uA (Typical)
End of line ON if Applicable: +50 uA (Typical)
Non Strobe Version:
Alarm Sounding – Sounder High: 8.00 mA (Typical)
Alarm Sounding – Sounder Low: 2.50 mA (Typical)
Alarm Sounding – Sounder Off: 150 uA (Typical)
Alarm Activated : 15.50 mA (Typical)
Strobe Version:
Alarm Sounding – Sounder High: 10.50 mA (Typical)
Alarm Sounding – Sounder Low: 4.90 mA (Typical)
Alarm Sounding – Sounder Off: 2.60 mA (Typical)
Alarm Activated: 18.00 mA (Typical)
LED Operation:
Detector in Normal State (Smoke): Flash at 20 Second Intervals
Detector in Normal State (Heat): Double Flash at 20 Second Intervals
Detector at EOL: Flash at 5 Second Intervals
Detector in Fault: Flash at 1.3 Second Intervals
Detector Detecting Fire: Flash at 0.7 Second Intervals
Detector in Fire (Once Processed at Panel): Continuous
Device Loading Units:
Max Loading Units per Zone: 160 DLU
Non Strobe Version:
Sounder High: 8.0 DLU
Sounder Low: 6.5 DLU
No Sounder: 1.0 DLU
Strobe Version:
Sounder High: 16.0 DLU
Sounder Low: 8.0 DLU
No Sounder: 8.0 DLU
Volume Level (@ 1m anechoic, Dual Tone):
Sounder High: 90+ dB(A)
Sounder Low: 70+ dB(A)
Dimensions:
