Description

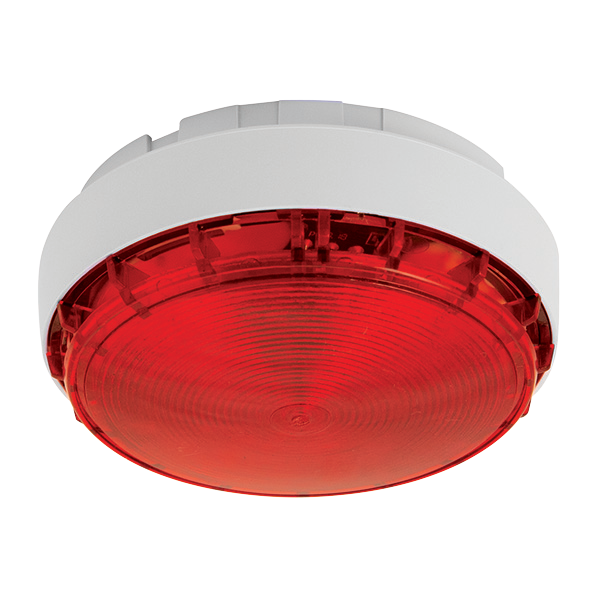

MAGDUO Sounder & Strobe Low Profile
Complete with 3 sounder modes and LED strobe Volume level adjustment Built-in End of Line function Low profile design Device wiring base included
Technical Specification:
Dimensions:Diameter: 105mm
Depth: 45mm (Low Profile) / 62mm (Domed)
Flush Depth Protruding: 34 mm
Surface Depth: 62 mm
Temperature Range:
Operating Temperature: -10°C to +50°C
Voltage Ranges:
DC Output from Mains Powered Panel: 25.5 to 35V DC
DC Output from Battery Powered Panel: 20 to 26V DC
Operating Current (Typical):
Quiescent: 223 uA
End of line ON if applicable (in addition to Quiescent): 198 uA
Alarm Sounding – Sounder High: 23.5 mA
Alarm Sounding – Sounder Low: 15 mA
Beacon: 5.5 mA
Volume Level (@ 1m anechoic, Dual Tone):
Sounder High: 90+ dB(A)
Sounder Low: 65+ dB(A)
Device Loading Units:
Max Device Loading Units per Zone: 160 DLU
Sounder High: 54.0 DLU
Sounder Low: 33.0 DLU
Beacon: 33.0 DLU
LED Operation:
EOL indication: 5 second interval
Beacon Operation:
Period: 1s
Flash Duration: 15 ms
Ingress Protection :
IP Rating: IP 21C
Dimensions:
