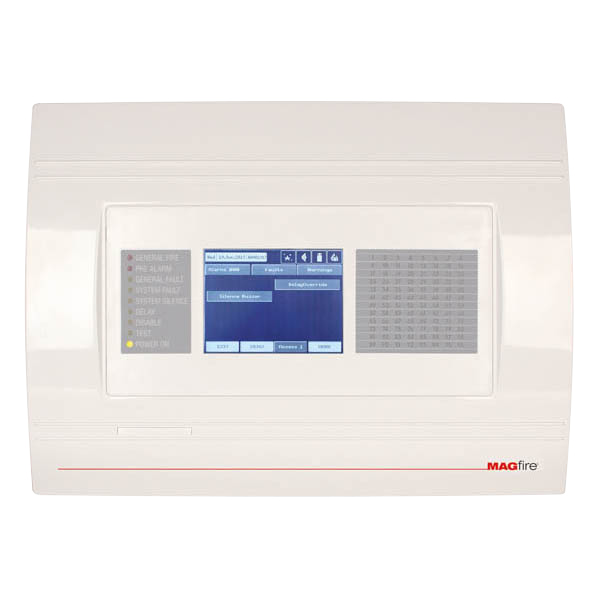

MAGPro 96 Zone Addressable Fire Alarm Panel

** This product is delivered directly from the supplier. Please allow 7-10 days for delivery **

The MAGPro range has been created to balance performance, reliability and aesthetics, whilst being fully compliant with CPR and certified to EN54 standards. The range includes everything required to complete a high quality, durable, addressable fire alarm installation.

96 zone addressable fire alarm panel supplied with 1 loop. Expandable to 4 loops using additional MAGPRO96-L250’s. A maximum of 250 devices can be connected to each loop.

• 96 Zones
• Maximum 250 devices per loop
• Memory Log: 10,000 events
• Networkable up to 32 Panels
• 320 x 240 pixel touch screen display
• Free programming software
• Micro USB port for PC connection
• Loop & battery calculator software included
• Certified to EN54–2/4
• CPR Compliant
• Inputs
• Loops: 1 expandable to 4
• Devices Per Loop: 250
• Protocol: MAGPRO
• Power Mains Fail Consumption
• 285mA DC - 1 LOOP
• 360mA DC - 2 LOOP
• 435mA DC - 3 LOOP
• 510mA DC - 4 LOOP
• Mains Supply: 230V AC + - 10%
• Max Loop Current: 500mA DC
• Backup: 1x12V 17Ah
• Outputs
• 1 Sounder: 24v DC @ 300mA
• 4 Programmable Relays: 110v ac @ 1A
• 2 Monitored Outputs: 24v DC @ 300mA
• 1 Auxiliary Output: 24v DC @ 300mA
• 1 Fault Output: 24v DC @ 300mA
• Environment
• Working Temperature: -5C TO +40C
• Storage: -10C TO 60C
• Humidity: 0 - 95%
• Weight: 4.2KG
• Dimensions: 456 x 350 x 125mm

Instruction Manual/Specification Sheet
Addressable v Conventional Information
MAGPro Catalogue

This item comes complete with a 12 month warranty from the manufacturer.
