Description

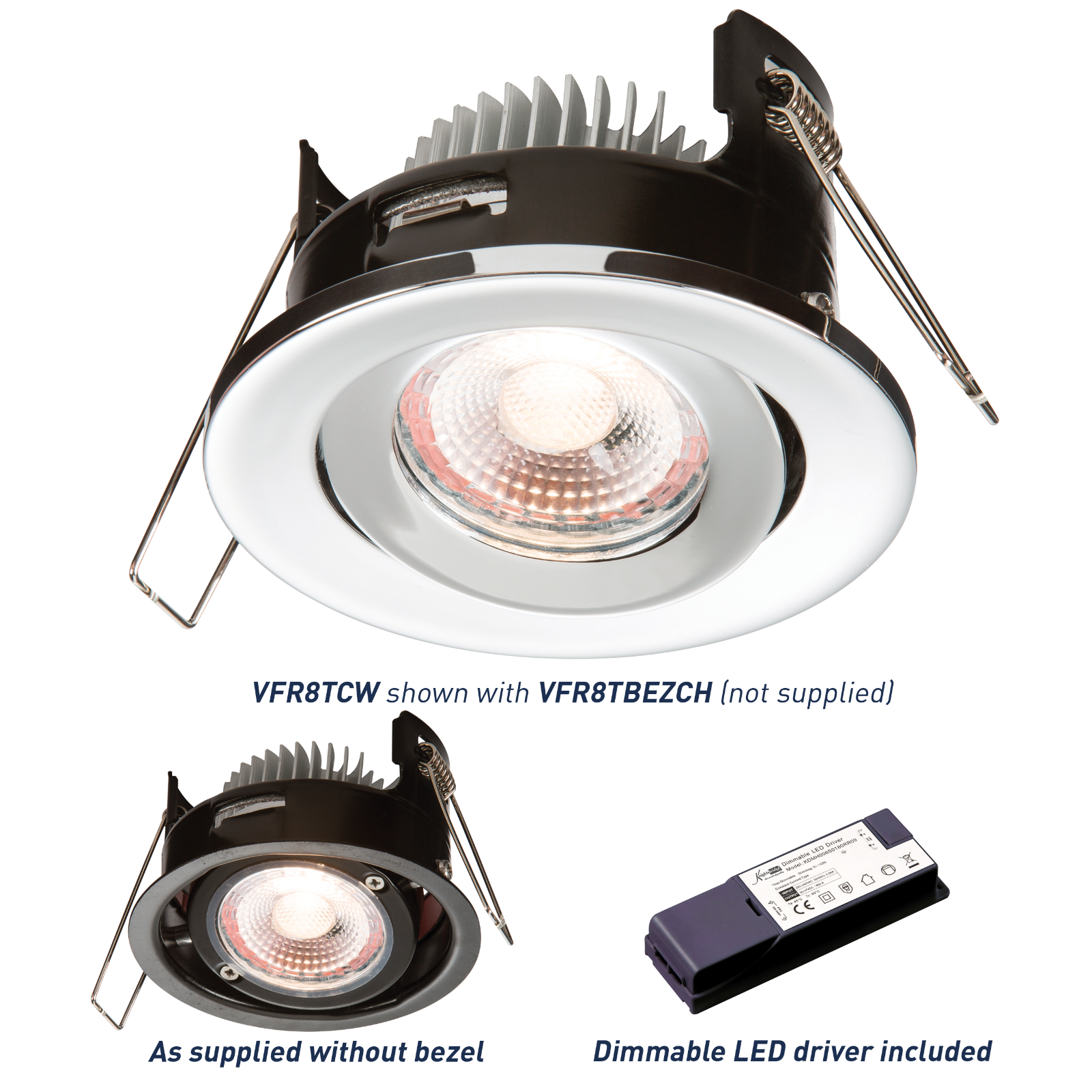

The Knightsbridge VFR8TCW/VFR8TWW 8 Watt Fire Rated Tilting LED with Integrated Driver and 64mm cutout.
This product's low profile construction of pressed steel incorporates the latest in aluminium heat sync technology. Supplied complete with Fully Dimmable easy to install loop-in loop-out driver. A selection of bezels in different designs and colours are available to complement most environments, be it domestic, retail, or commercial.
Technical Specification:
Technical Specification:
- Bezel Diameter: 80mm
- Rim Diameter: 76.5mm
- Cut Out: 64mm
- Minimum Depth (Void): 75mm
- Total length of driver lead: 300mm
- Weight: 0.29Kg
- Recommended product location: Indoor Outdoor
- Control Gear Type: 8W 180mA SELV LED Dimmable Driver supplied pre-wired to downlight
- Lamp Supplied: Fixed non-replaceable 8W COB LED
- Class: Class II. Must not be Earthed
- IP: IP65
- Photometric Testing: Yes
- Lumen Output: 460lm Warm White €“ 530lm Cool White
- Beam Angle: 38o
- Dimmable: Yes
Main Materials:
- Chassis Pressed Steel
- Body Die cast
- Bezel Die cast
Fixing Method & Certs:
- Method of fix: Twin fixed spring
- Electrical Connections: Loop in 10Amp L.N. Earth Park Nylon Connector, Push-in Terminals
- CE mark: Yes
- Manufactured in accordance:
- EN60598-1 General requirements
- EN60598-2-1 Fixed general purpose luminaires
- EN60598-2-2 Recessed luminaires
- BS5250 (Energy efficiency, Useful heat loss and passage of condensation)
- BS ISO 10140: Acoustics: Building Elements, Part P (Installation requirements)
- BS476 €“ Part 21 & Part 23 Fire rating
Comes with a 4 Year Manufacturer's Warranty.
To view the manufacturer's manual for this product, Click Here
To view the manufacturer's manual for this product, Click Here
