Description

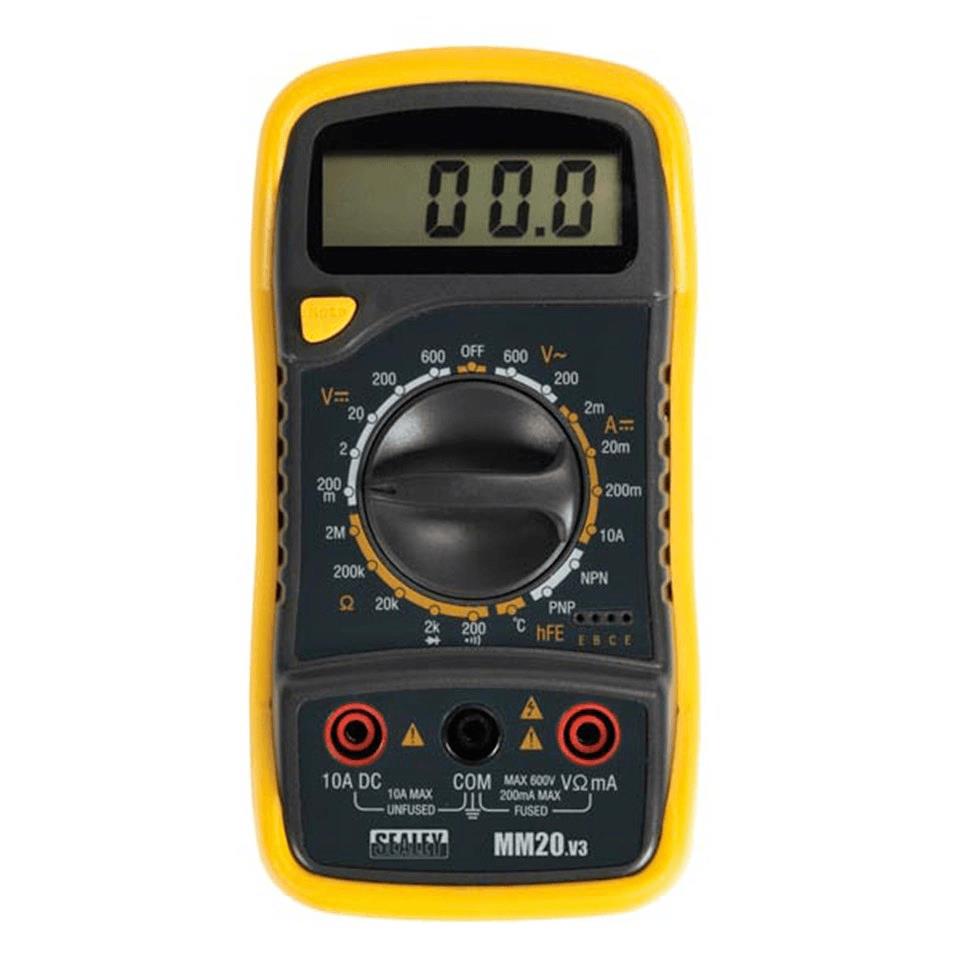

8 Function Digital Multimeter - Yellow
- Heavy-duty general purpose multimeter with clear and easy-to-read LCD display.
- Features data-hold function, temperature probe, and diode test facility.

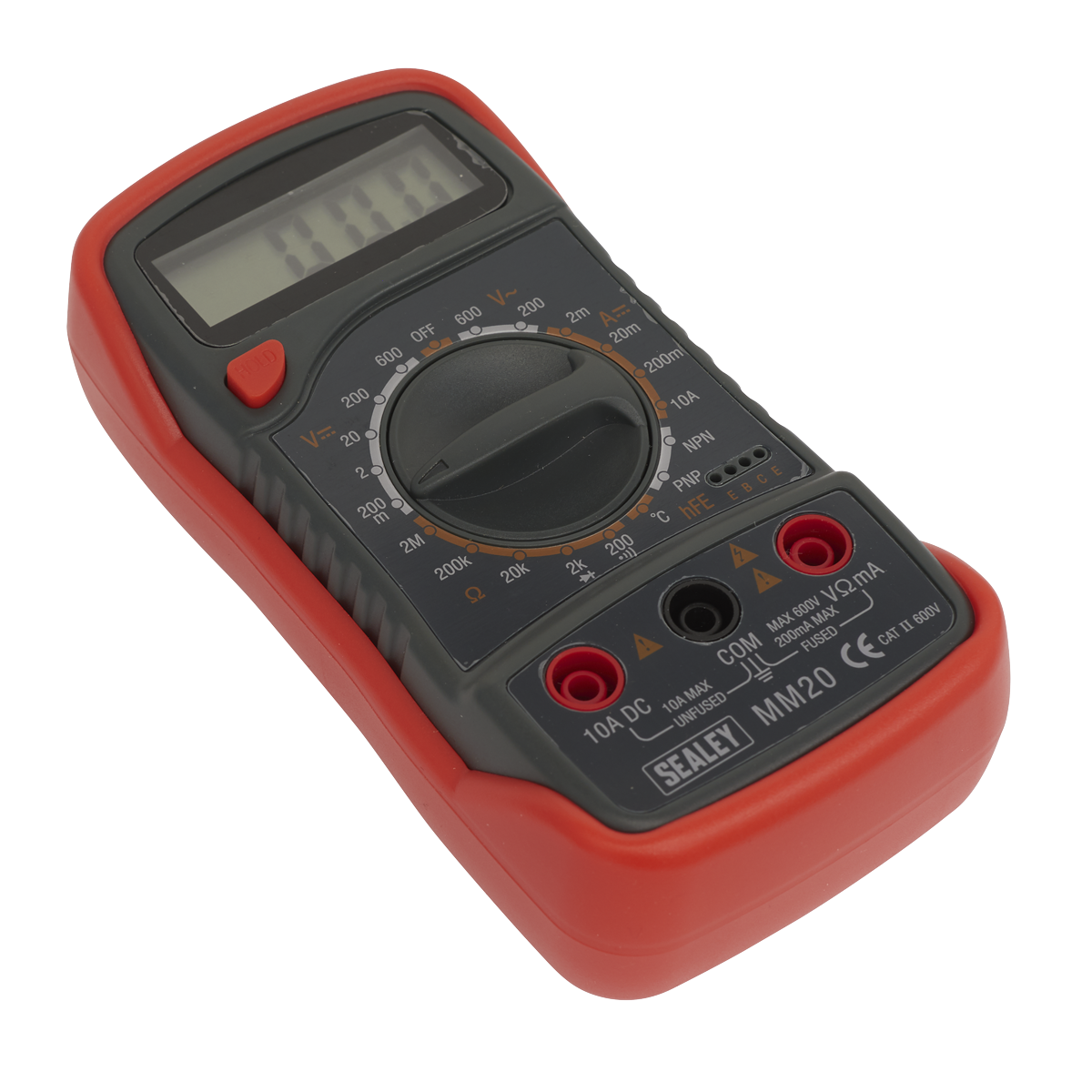

- Housed in rugged rubber boot with integral stand.

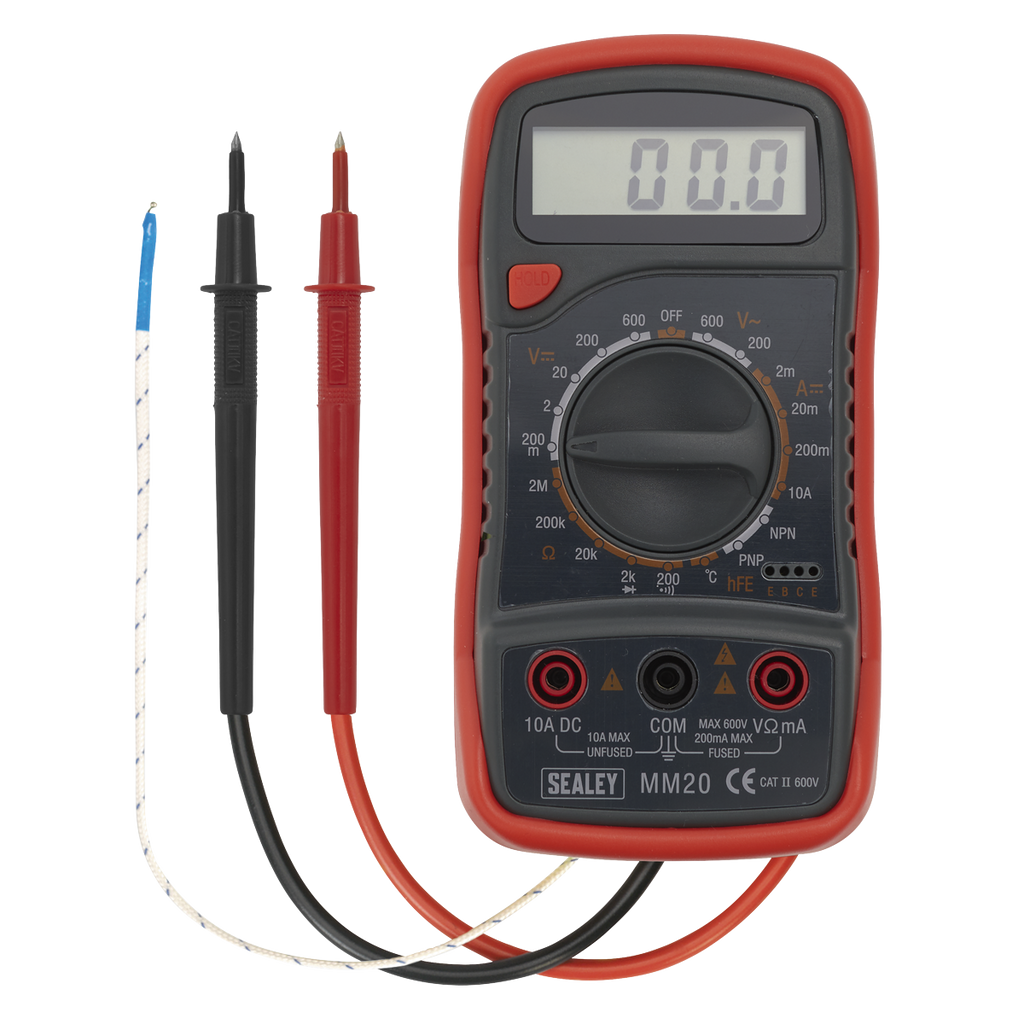

- Supplied with a full set of leads and probes.
- Measures:
- AC and DC Voltage
- DC Current
- Resistance
- Temperature
- Audible Continuity
- Diode/Transistor Verification Mode
Technical Specification
- Nett Weight: 260g
- AC Voltage (Accuracy): 200V, 600V (±2%)
- DC Voltage (Accuracy): 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%)
- AC Current (Accuracy): No
- DC Current (Accuracy): 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%)
- Resistance (Accuracy): 200‰ ©, 2k‰ ©, 20k‰ ©, 200k‰ © (±0.8%), 2M‰ © (±1.2%)
- Capacitance (Accuracy): No
- Temperature (Accuracy): Range; -40?C-1000?C, (±1% up to 400?C), (±2% over 400?C)
- Frequency (Accuracy): No
- Duty Cycle: No
- Continuity Audible: Yes
- Diode Test: Yes
- Transistor Test: Yes
- High-Impact Rubber Case: Yes
- Digits x Height: 6 x 12mm
- Low Battery Indicator: Yes
- Battery (Supplied): 1 x 9V
- Information: Integral Stand
- Size (L x W x D): 140 x 70 x 35mm
- Weight: 260g
- Conformity: IEC 1010
1 Year Manufacturer's Warranty
