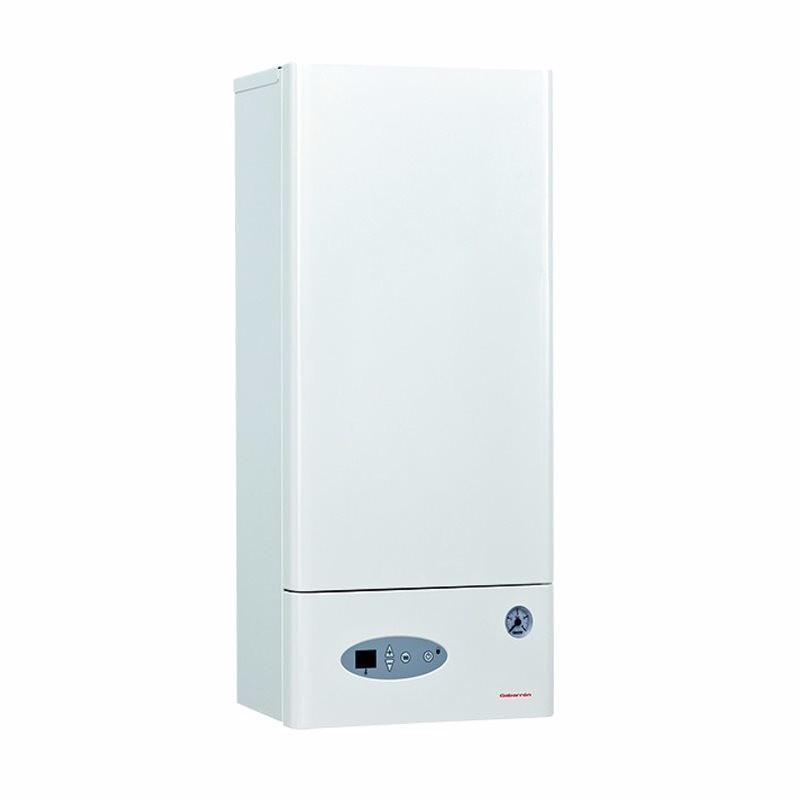

3kW - 15kW Wall Mounted Digital Modulating Electric Heating Boiler

The Elnur CM15 Electric Heating Boiler with adjustable 3kW to 15kW Outputs offers you the opportunity to enjoy the safety and convenience of electric energy.

Please contact us for Special Pricing and Offers on this range.

These are the ideal option when a totally safe and efficient central heating system is required in both 3 x 400V+N~ and 230V~. The boiler is compatible for one or three phases by using the bridge connection included) in the terminal block.

The entire range of Elnur boilers can be used with hot water radiators or with radiant floor heating, with room or programmable thermostats, and unlike other boilers, they do not require yearly maintenance or safety inspections.

All the components required for the operation and installation are supplied with the boiler. Installations do not require venting or gas outlets which may compromise the insulation of your home.

These electronic boilers from Elnur are completely silent thanks to their TRIAC-based technology. Moreover, they have a modulating operation which, combined with a good exterior programmable thermostat (see accessories), adapts the heating power to the needs of the system, achieving maximum energy efficiency and a considerable saving in consumption.

The maximum power can be limited to any of the modulation levels. With the CM15 this range is from 15kW down to 3kW

The different temperature, flow and consumption sensors ensure a safe and reliable operation.

The digital display constantly shows the temperature of the circulating heating water.
Adjustment of the heating is made easier by using individual keys to increase or decrease the temperature.
You can disconnect the heating system in summer and both keypads can be locked to prevent any changes.
The electronic control of the circulation pump prevents blockage during long periods of inactivity.

Where can an Electric Boiler be used?
An electric boiler can replace any other small to medium size boiler in the home, and are known to be light, small and compact, often completely silent and, of course, boasting the main benefit of a low running cost due to the price of electricity in comparison to oil or gas.

It is most common to need an electric powered boiler in rural areas where oil or gas access may not be available, but also some new housing projects or flats are being fitted with electric boilers by choice due to its environmental and cost benefits.

Comes with a 2 Year Manufacturer's Warranty.

Please allow 3-5 Working Days for Delivery.

Features:

• Wall-mounted heating boiler made of insulated steel.
• Modulating electronic control of the heater by SEM system (Smart Electronic Modulating System).
• Stainless steel shielded elements INCOLOY 800.
• 6L heating expansion vessel.
• Digital display.
• Hydrometer 0-4bar.
• Circulating pump.
• Auto air vent.
• Silent TRIAC power switches.
• Heating flow detector.
• Heating temperature limiter 100°C.
• 7 bar heating pressure relief valve.
• Powder-coated RAL 9010 steel structure.
• Wall bracket steel template to set up connections easily.
• Compatible with Ambient Thermostats TA3, CPT10 and X2D available as an accessory.
• Compatible with standard power managers (RG90, GReyder) offered as an accessory.

Technical Features:

• Output: Selectable between 3kW and 15kW
• Frequency: 50Hz
• Voltage: 220-240V / 3x400V+N
• Dimensions: 35cm(Width)x76cm(Height)x26.5cm(Depth)
• Weight: 29.5Kg

Outputs:
3kW - 2580kcal/h, 13A Current 3x400 V+N, 13A Current 230V
4kW - 3440kcal/h, 8.7A Current 3x400 V+N, 17.4A Current 230V
5kW - 4300kcal/h, 13A Current 3x400 V+N, 21.7A Current 230V
6kW - 5160kcal/h, 8.7A Current 3x400 V+N, 26.1A Current 230V
7kW - 6020kcal/h, 13A Current 3x400 V+N, 30.4A Current 230V
8kW - 6880kcal/h, 13A Current 3x400 V+N, 34.8A Current 230V
9kW - 7740kcal/h, 13A Current 3x400 V+N, 39.1A Current 230V
10kW - 8600kcal/h, 21.7A Current 3x400 V+N, 43.5A Current 230V
11kW - 9460kcal/h, 21.7A Current 3x400 V+N, 47.8A Current 230V
12kW - 10320kcal/h, 21.7A Current 3x400 V+N, 52.2A Current 230V
13kW - 11180kcal/h, 21.7A Current 3x400 V+N, Ask about Current 230V
15kW - 12900kcal/h, 21.7A Current 3x400 V+N, Ask about Current 230V
