Description

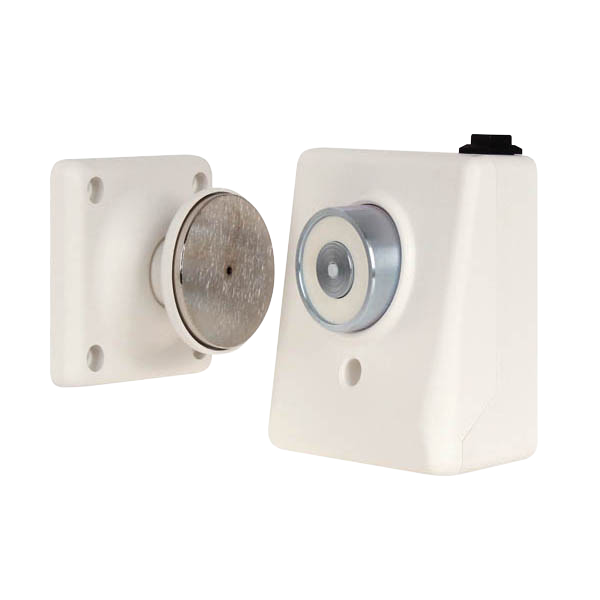

This electromagnetic door retainer unit is designed for use in fire applications where doors are usually kept open but in the event of a fire alarm being activated all automatically shut to act as a fire door. These units have a holding force of 40kg and a spring return action eliminates the problems of residual magnetism keeping the doors in place.
There is also a manual release button mounted on surface box so that the door can be closed easily when needed. The swivel keeper plate ensures that the magnetic connection is made every time no matter the angle the door is facing
Fire alarms should be installed by an electrician in accordance with the current electrical engineering codes of practice, IEE regulations for electrical equipment and current Fire Regulations.
Main Features:
- Electromagnetic
- Fire Safety Device
Technical Data:
- Voltage: 24V
- Colour: White
- Holding Force: 40kg
- ‘£Door Retainer Unit Dimensions: W 100mm x L 97mm x D 43mm
- Swivel Keeper Plate Dimensions: W 70mm x L 70mm x D 40mm
- Door Closer Power: 3 to 6
- Residual Holding Force: Zero
