Description

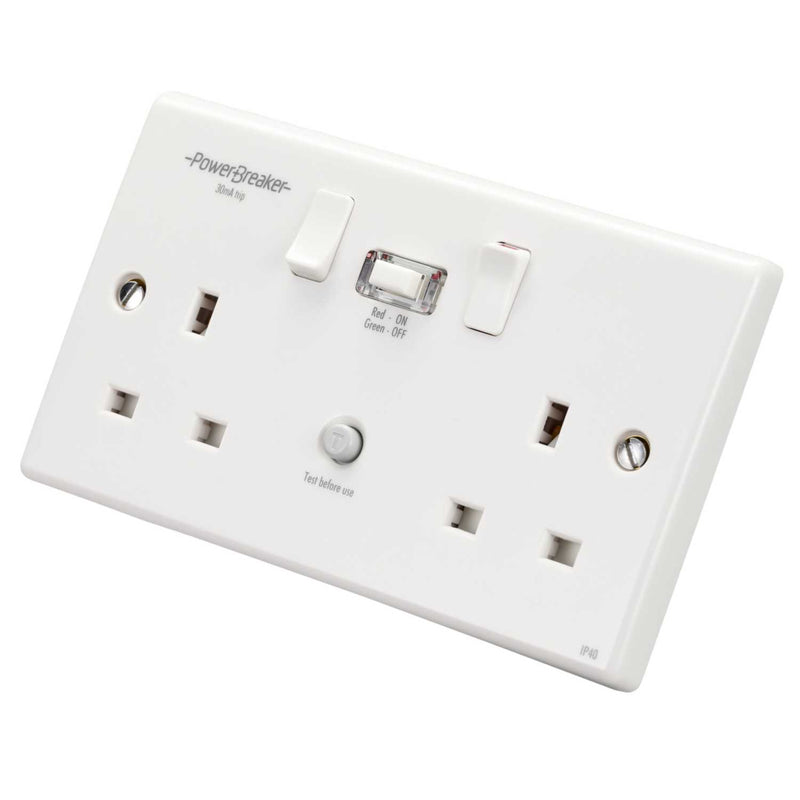

- Mechanically latched (does not need resetting after a power loss)
- Red & Green dual flag system to show power on/off
- High intensity LED power on indicator
- Cuts the power for added protection against electrocution
- Twin earth terminals on Twin sockets
- White sockets fit standard 35mm back box
- IP40
- 30mA
- Passive
- Type A
Technical Specification:
Colour: White
Voltage: 230V AC ~ 50Hz
Max Operating Current: 13A (13A Inductive)
IP Rating: IP40
Rated Trip Current: 30mA
Typical Trip Speed: Less than 20mS (typical)
RCD Contact Break: Double Pole
Rated Short Circuit Breaking & Making Capacity: 250A
Rated Conditional Short-Circuit Current: 1500A Power Factor Range .93 to .98
Latching: Mechanical - No need to reset after Power Loss (Passive)
Responsive To: Pulsating DC earth faults
Main Housing Material: Urea
Conforms to: BS 7288-2016 / BS 1363-2:2016
Dimensions: Length: 147mm x Height: 86mm
Weight: 0.236Kg
Warranty: 1 Year
