Description

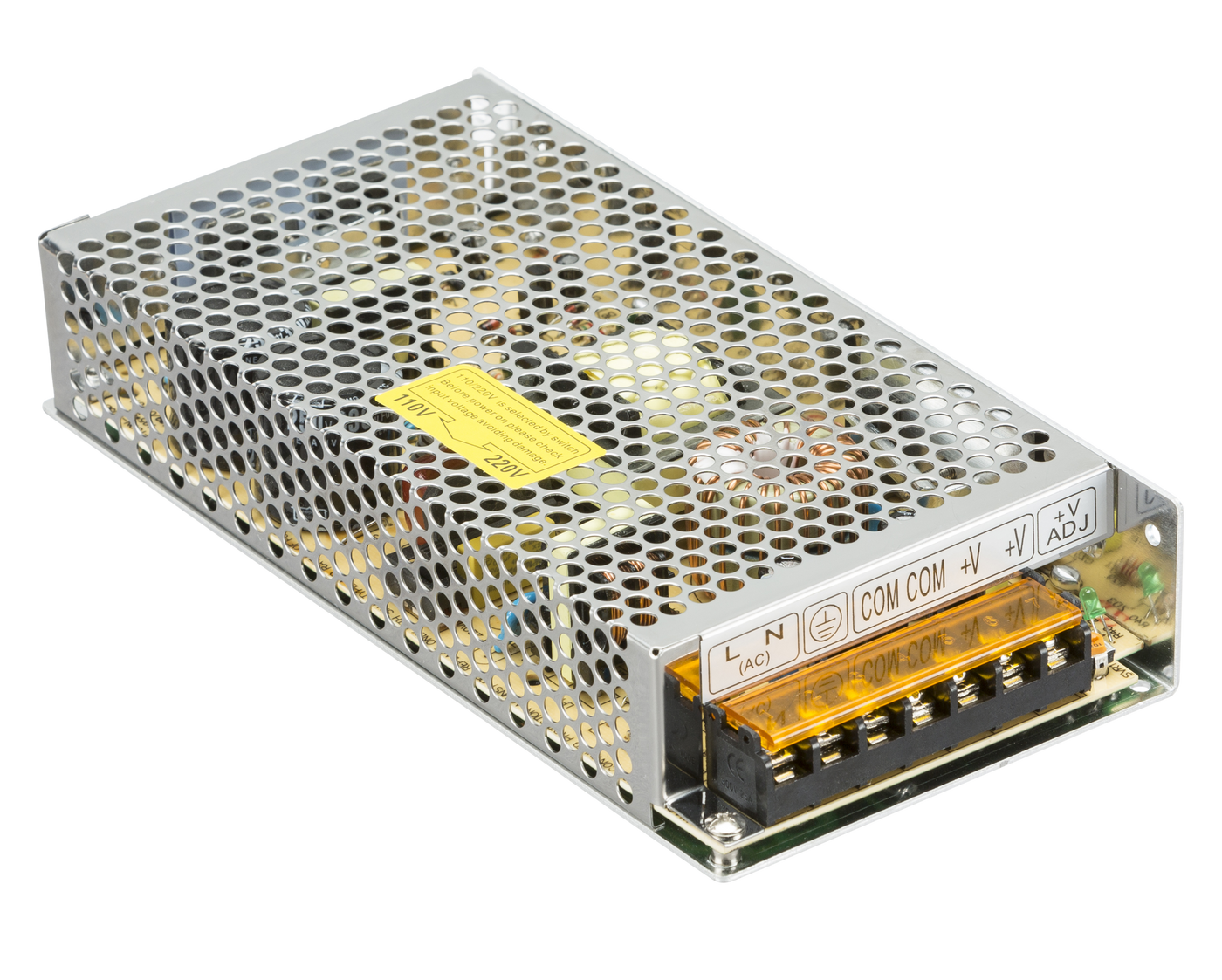

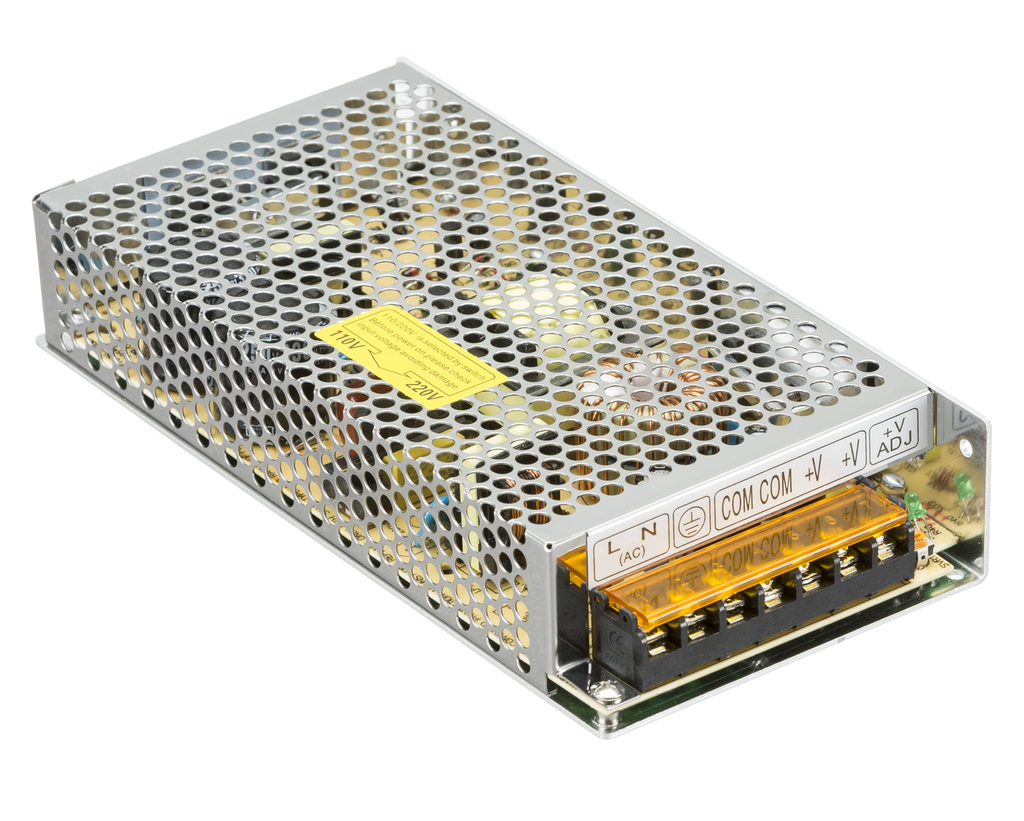

The KnightsBridge 24DC100, 24 Volt 100 Watt LED Flex Rope Lighting DC Power Supply is ideal for use with IP20 Led Flexible Rope Lighting.
Technical Specification:
- Input Voltage (V): 100-240V 50/60Hz
- Secondary Voltage (V): 24V DC Adjustable
- Rated Current (Secondary) (A): 6.25A
- Rated Load(W): 150Watts
- Driver Type: Constant Voltage
- Standard Overall dimensions (mm): 37mm x 160mm x 96mm
- Colour: Silver
- Isolation Class: Class I Must be earthed
- IP: IP20
- Recommended product location: Indoor in Free Air Space
- Short Circuit Protection: Yes ‘ Auto Reset
- Thermal Protection: Yes ‘ Single Shot Thermal Fuse
- Overload Protection: Yes
- Surge Protection: Yes
- Power factor correction: Yes
- Dimmable: No
- Main materials: Aluminum ‘ Perforated chromium plated steel
- Method of fix: Free standing
- Input Connection: Screwed terminal clamp
- Output Connection: Screwed terminal clamp
Manufactured in accordance to: EN55015(EMC/Emitted RF) ,EN61547(EMC/Immunity), EN61000.3.2(EMC/Supply Harmonics), EN61347-2-7(Safety) SELV
Comes with a 1 year manufacturer's warranty.
