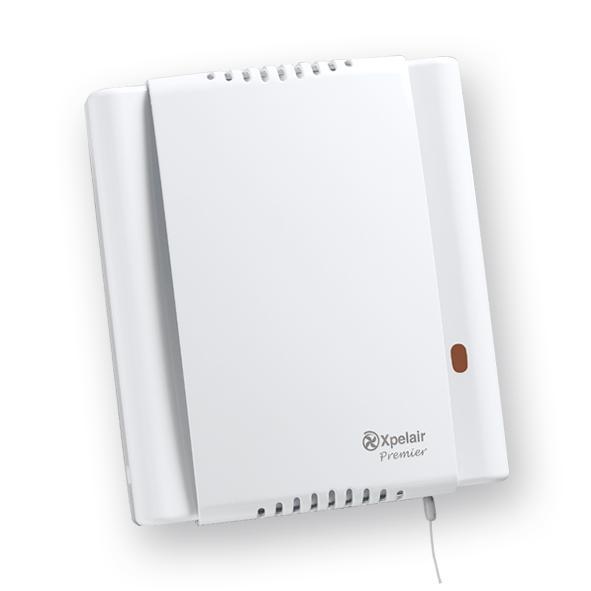

DX200T 4 100mm Premier Centrifugal Extrator Fan With Timer

The 91014AW DX200T from Xpelair is a 4 100mm centrifugal extractor fan with 4 speed settings and a built-in over-run timer to continue the extraction of moisture and odours after the unit is switched off, and is adjustable for a 30 second - 20 minute run time,  offering extra control over humidity and odours in bathrooms, shower rooms, cloakrooms, and toilets.

Part of Xpelairs Premier range of domestic and commercial centrifugal extractor fans, the DX200T utilizes the revolutionary Ghost air movement technology, making this the quietest intermittent fan range available on the market today.

This model is ideal for use in homes where a longer duct run is required, and also is a great choice for hotel rooms, office toilets, and commercial wet rooms.

The DX200T features a gloss white casing & Neon indicator with a clean and sleek appearance and can be surface mounted or easily recessed into ceilings or stud work walls, in recesses as little as 50mm deep. It can also be can be connected, using the side entry knockout provided, to profile 29mm flat plastic ducting with the use of an FDA Premier fan adaptor accessory. Alternatively 100mm circular ducting can be used with the spigot supplied. The DX200T can also be through-wall mounted using a 100mm wall tube kit.

DX200 models feature totally enclosed and maintenance free for life motors, with self-aligning bearings and thermal cut-out protection. The clip off front cover and pull off removable fan blade allow easy cleaning and maintenance and all feature an automatic air operated back draught shutter.

Main Features:

• 100mm (4) axial extract fan
• Built in 2 - 20 minute run-off timer
• Maximum fan performance 21 l/s
• Lubricated for life motors with thermal cut-out protection
• Clip-off front cover for ease of cleaning

Technical Specification:

• Electrical power rating: 34W
• Box Contents: Fan/Installation guide/Fixing kit/Grille
• Extract performance (FID, M³/h) Max/Min: 36 / 50 / 79 / 108
• Extract performance (FID, l/s) Max/Min: 10 / 14 / 22 / 30
• Sound pressure level dB(A)@3m: 26 / 32 / 42 / 50
• Specific Fan Power (SFP) (W/l/s): 1.13
• Operation Speeds: 4
• IPX Rating: 5
• Weight: 2.2kg
• Timer: Yes
• Trickle Facility: Yes

Comes with a 2 Year UK Manufacturer's Warranty
