Description

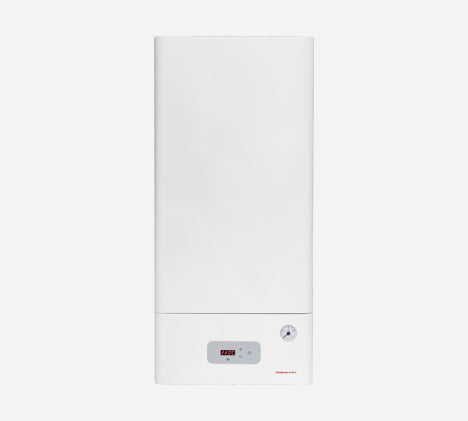

MAS15 Mattira System Digital Modulating, Heating Only Electric Boiler. Also compatible with the Elnur Connected Range.
- Modulating electronic control of the heater by SEM system (Smart Electronic Modulating System)
- Circulating pump
- Heating flow detector
- 7 bar heating pressure relief valve
Features:
Wall mounted heating boiler made of insulated steel
Modulating electronic control of the heater by SEM system (Smart Electronic Modulating System)
Stainless steel shielded elements INCOLOY 800
6L heating expansion vessel
Digital display
Hydrometer 0-4bar
Circulating pump
Auto air vent
Silent TRIAC power switches
Heating flow detector
Heating temperature limiter 100ºC
7 bar heating pressure relief valve
Powder coated RAL 9010 steel structure
Wall bracket steel template to set up connections easily
Compatible with Elnur Connect
Compatible with Underfloor heating
| MODEL | MAS15 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Selectable Output kW | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 15 |
| kcal/h | 2580 | 3440 | 4300 | 5160 | 6020 | 6880 | 7740 | 8600 | 9460 | 10320 | 11180 | 12900 |
| Current 3 x 400 V+N~ A | 13.0 | 8.7 | 13.0 | 8.7 | 13.0 | 13.0 | 13.0 | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 |
| *Current 230 V~ A | 14.0 | 17.4 | 21.7 | 26.1 | 30.4 | 34.8 | 39.1 | 43.5 | 47.8 | 52.2 | Ask | Ask |
| MODEL | MAS15 |
|---|---|
| Voltage V | 3x400 V+N / 220-240 |
| Frequency Hz | 50 |
| Insulation | Class 1 |
| Net weight kg | 29.5 |
| EAN 13 | 8432336804205 |
