63A MCB B Curve 1 Pole 6kA Circuit Breakers Domestic Consumer Units

The B Curve Single Pole 6kA MCB by ESR is available in many amp ratings ranging from 6 Amp through to 63 Amp. This range includes the B6B1-6, B6B1-10, B6B1-16, B6B1-20, B6B1-25, B6B1-32, B6B1-40, B6B1-50 and B6B1-63 models.

These MCBs are designed to protect the user and their property from overloads and short circuits by breaking the current as it passes through your consumer unit in the event of suggested dangerous earth leakage. MCBs are known to save lives and are a commonly used component in domestic consumer unit configurations.

These MCB modules will use 1 module/way on your consumer unit rail bar, and are ideal for use with lighting/heating circuits in B curve (uses where switching surges are low or non-existent), All models in this list will trip at 30mA.

B curve RCBOs will trip at 3-5 times the rated current, while C curve RCBOs will trip at 5-10 times the rated current. Therefore we advise consulting your electrician if you are unsure which curve or current is right for your desired application, as the wrong type may cause unnecessary tripping or create a potential hazard.

Main Features:

• Single pole MCB circuit breakers in a range of current rating options
• Easily installed in your ESR modular consumer unit
• Safe and reliable product that is known to save lives and severely reduce risk of property damage

Technical Specification:

• Voltage: 230V
• Frequency: 50 Hz
• Modular size: 1 Module/way
• Pole: Single Pole
• Circuit Rating: 6kA
• BS EN60898-1

Models in this range:

B6B1-6 - MCB B Curve 6kA Single Pole - 6a
B6B1-10 - MCB B Curve 6kA Single Pole - 10a
B6B1-16 - MCB B Curve 6kA Single Pole - 16a
B6B1-20 - MCB B Curve 6kA Single Pole - 20a
B6B1-25 - MCB B Curve 6kA Single Pole - 25a
B6B1-32 - MCB B Curve 6kA Single Pole - 32a
B6B1-40 - MCB B Curve 6kA Single Pole - 40a
B6B1-50 - MCB B Curve 6kA Single Pole - 50a

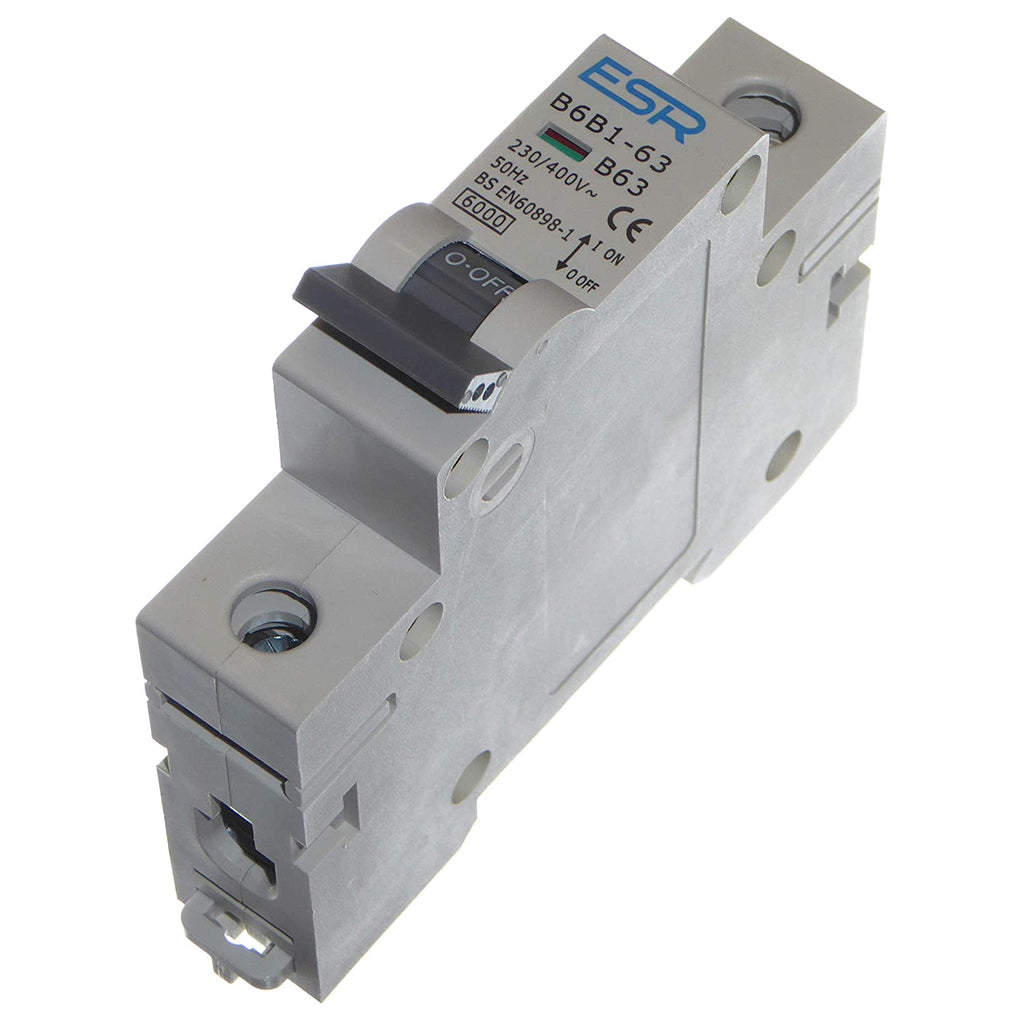

B6B1-63 - MCB B Curve 6kA Single Pole - 63a
