Description

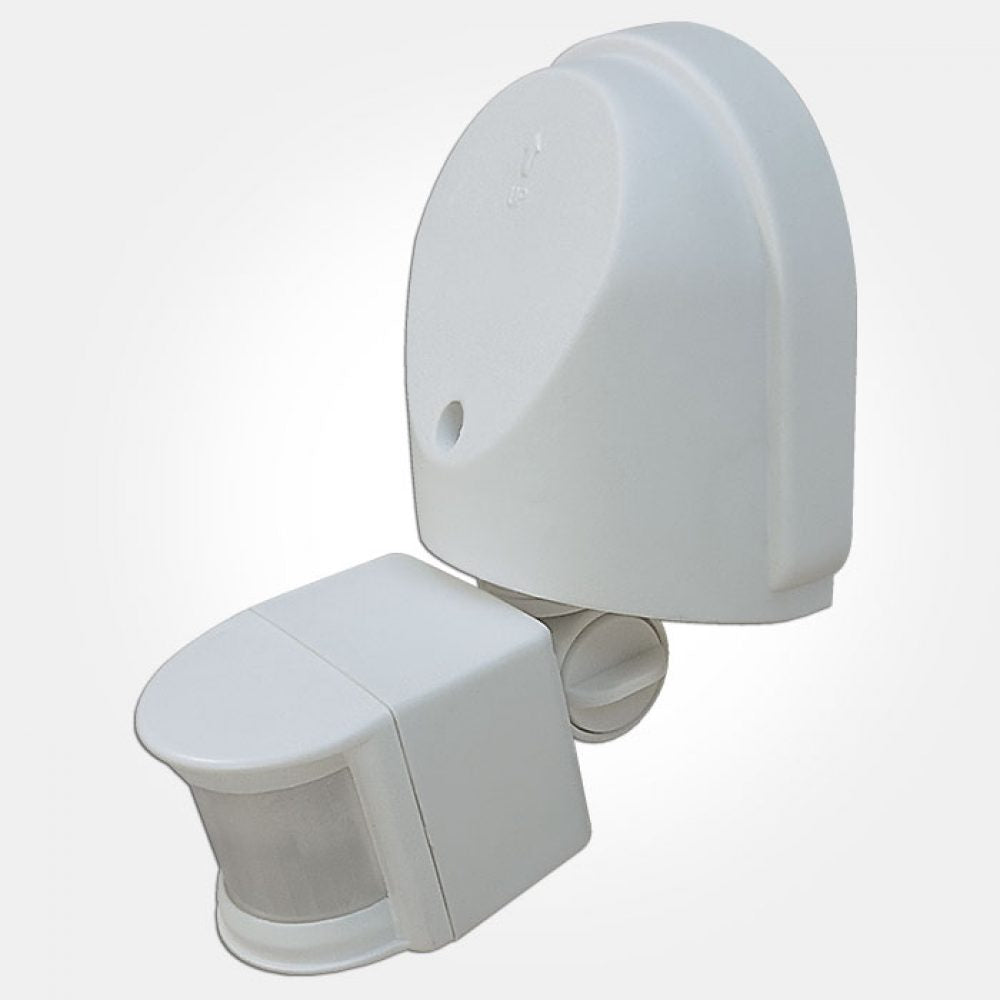

The PIR180 PIR movement sensor is an ideal low profile switch for controlling lights economically in your home or business. This sensor mounts to your fascia board and will activate when it senses motion within its 12m x 180° viewing area.

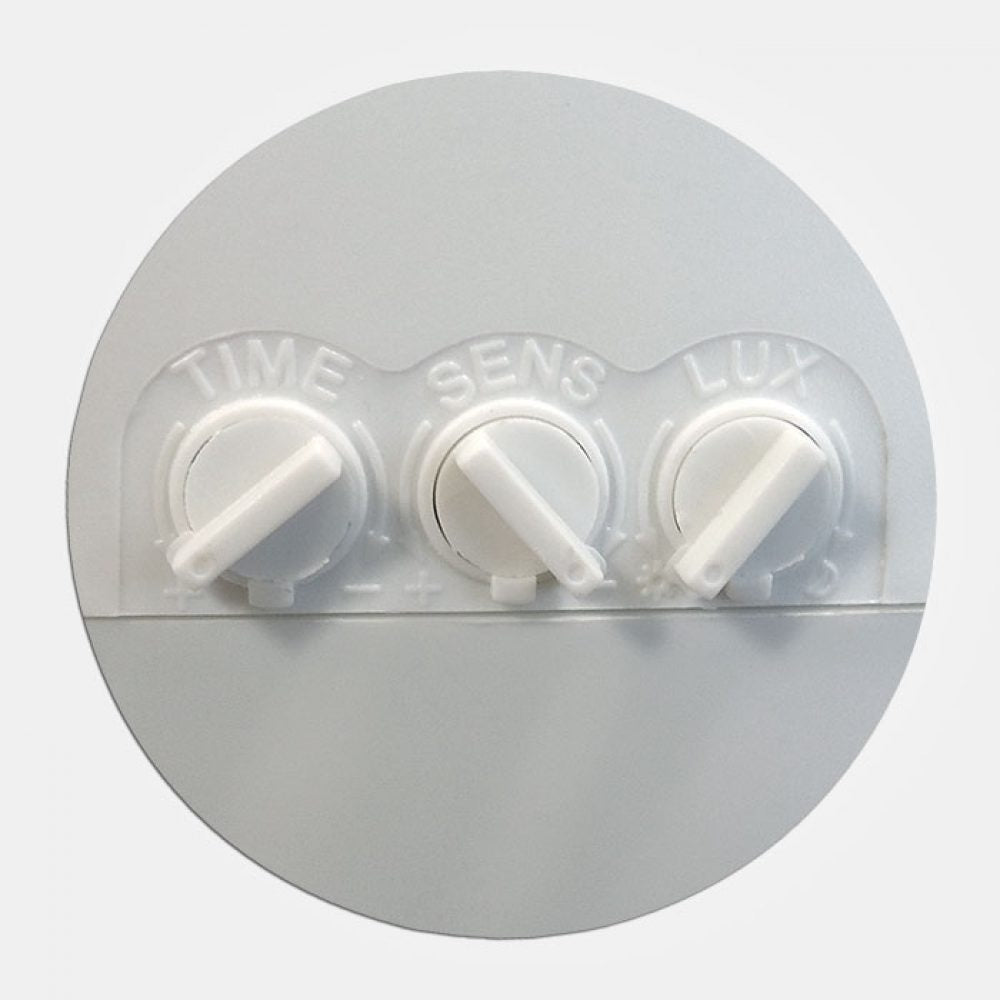

This sensor can be set to operate lights for a pre-set time that you can adjust using the controls on the sensor. The timer can be set to stay on from 5 sec - 5 min depending on your requirements. The adjustable LUX level also allows you to change the illumination of the bulbs in the circuit from the PIR sensor
Please note a live and neutral feed is required for PIR sensors. For best results mount near a door or main entryway.
Main Features:

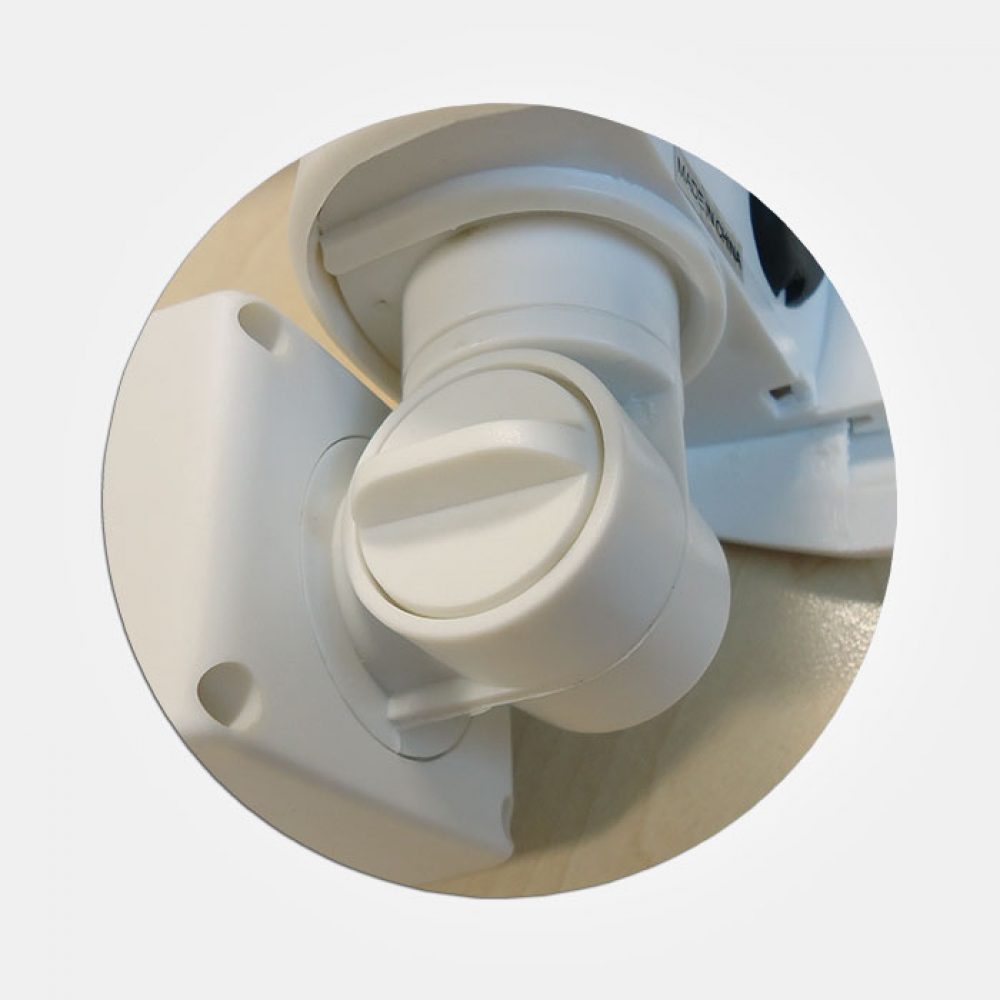

- Vertically & horizontally adjustable detector
- Adjustable LUX level
- Box Contains: External PIR Detector, Installation Guide & Mounting Fixtures
- Adjustable Duration
Technical Specification:
- Range: 12m
- Material: ABS Plastic
- Detection Zone: 180°
- Size: 95W, 150H & 130D
- Weight: 300g
- Max Wattage: 1000W Incandescent & 300W Florescent 200W LED
- Capacity: 8 lamps Max.
- Time on adjustable 5 sec - 5 min
Comes with a 1 Year Manufacturer's Warranty.
