Description

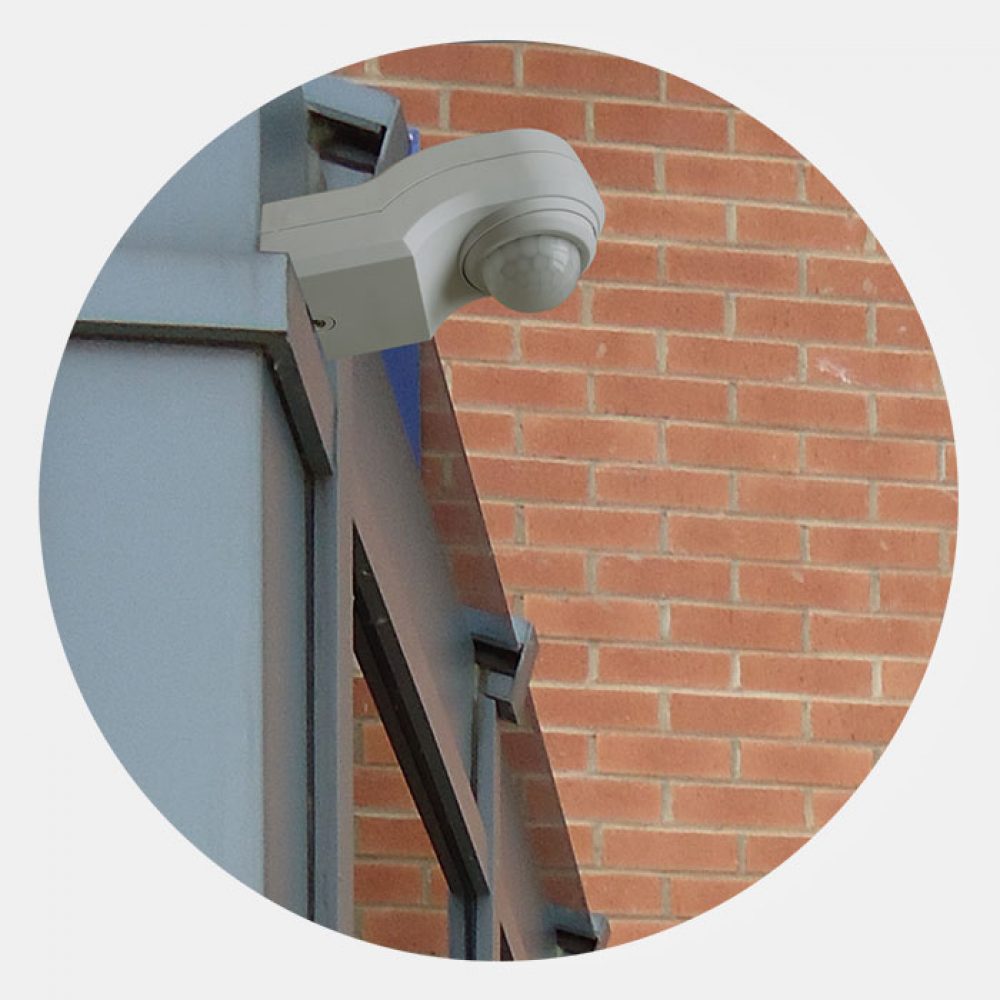

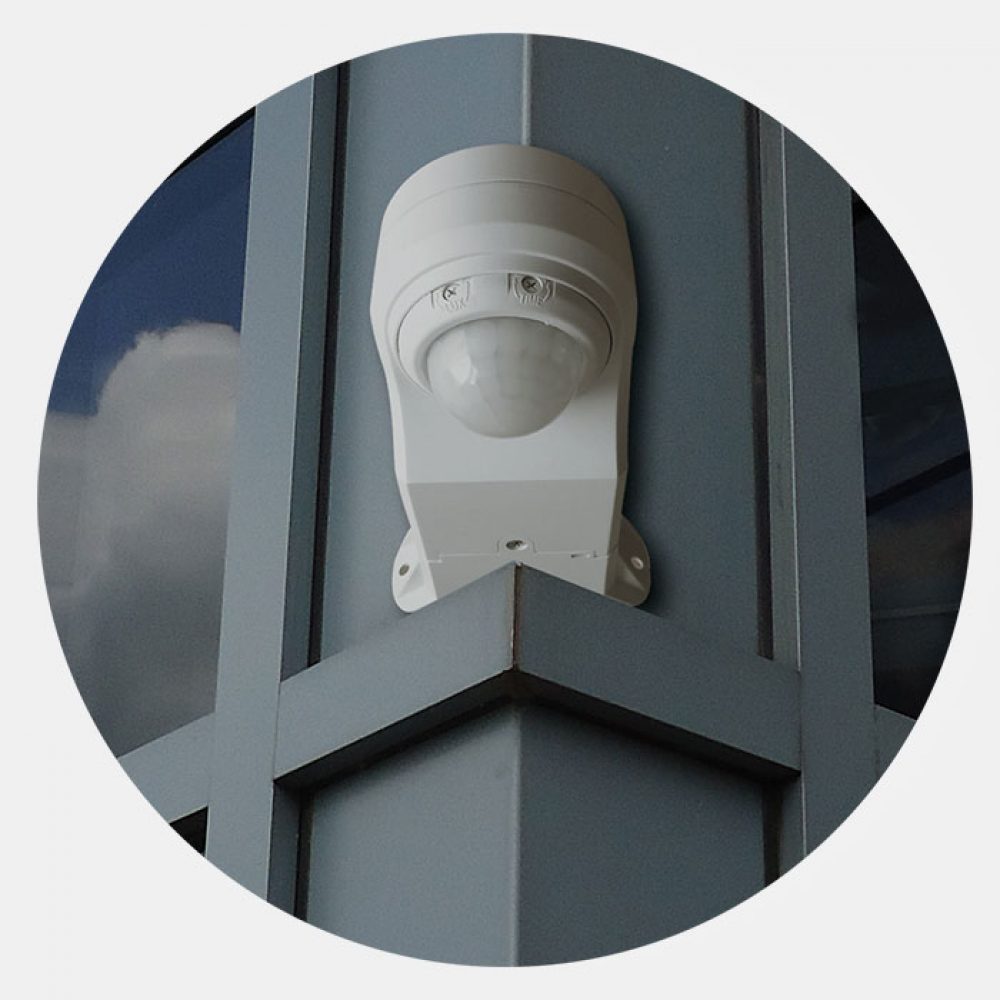

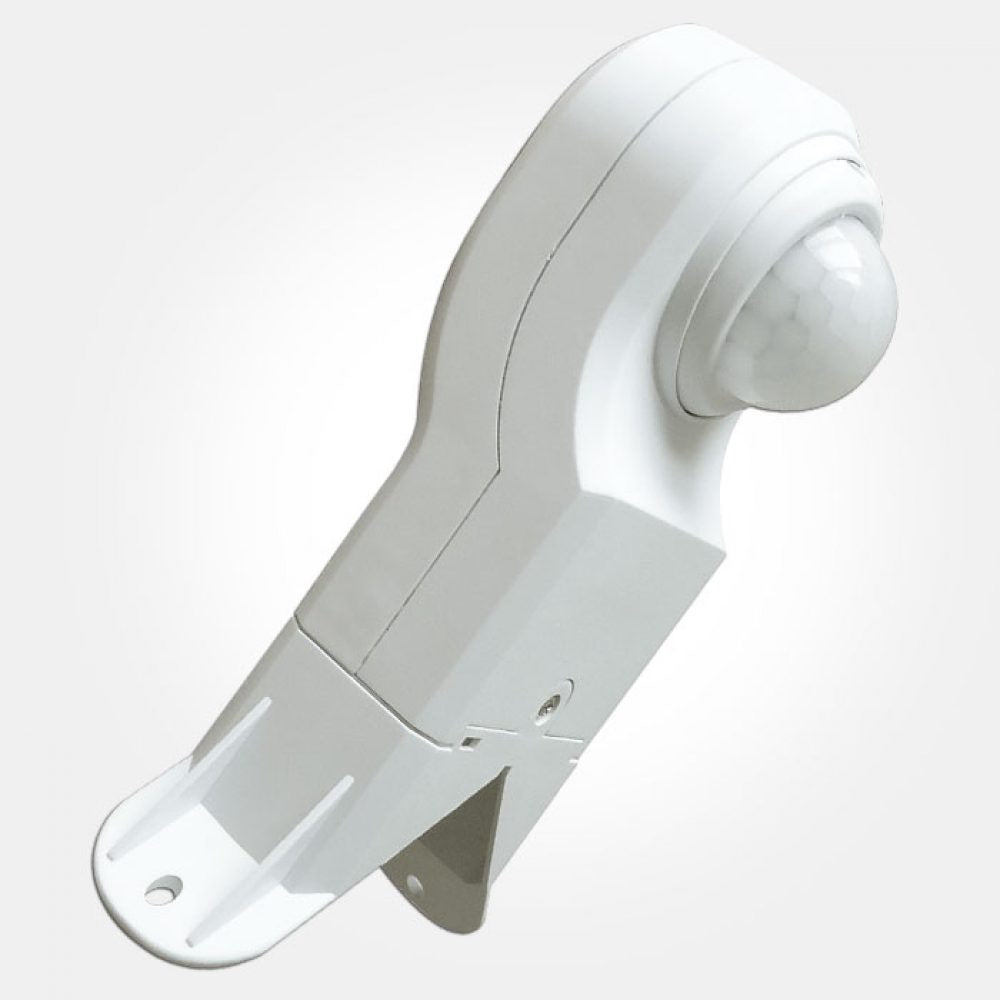

The IP44 External 360° PIR Sensor is a low profile switch for controlling lights economically in your home or business. This sensor comes equipped with mounting brackets allowing the sensor to be fitted on corners, and will activate when it senses motion within its 12M x 360° viewing area.

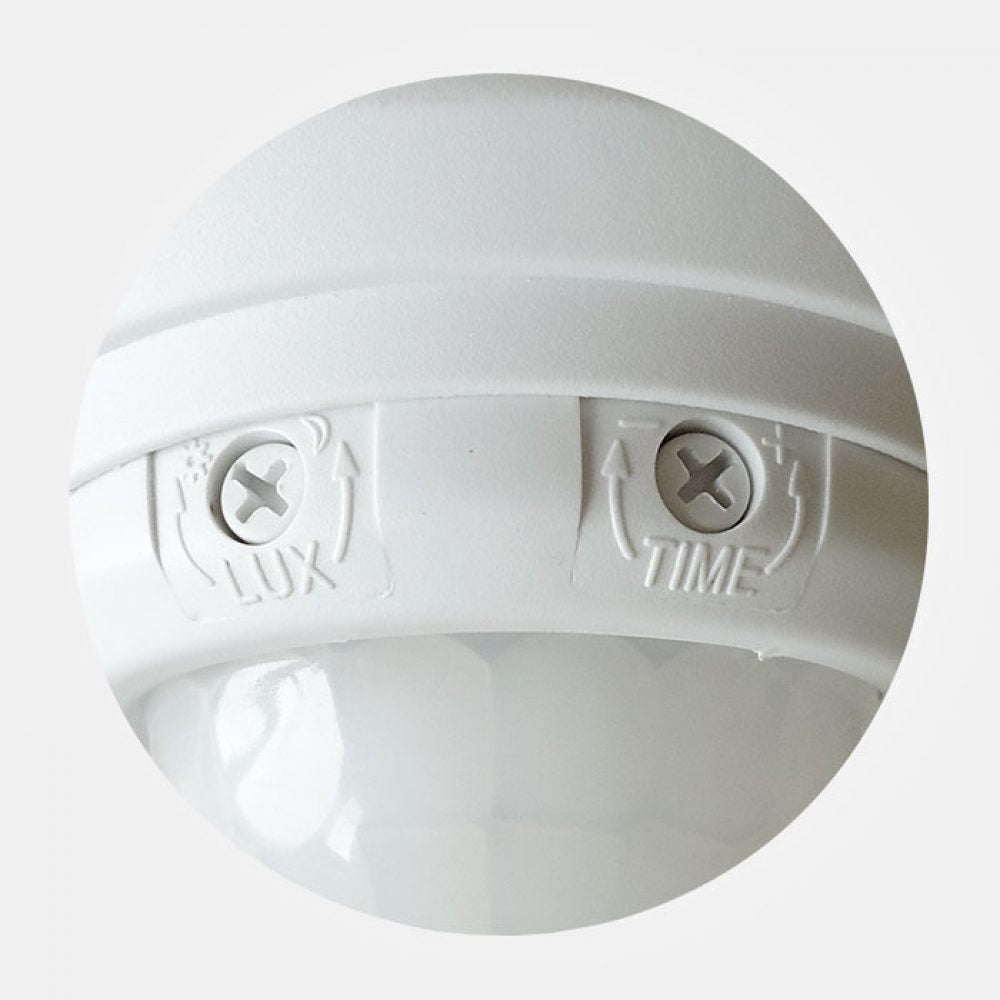

This sensor can be set to operate lights for a pre-set time that you can adjust using the controls on the sensor. The timer can be set to stay on from 5 sec - 5 min depending on your requirements. The adjustable LUX level also allows you to change the illumination of the bulbs in the circuit from the PIR sensor
Please note a live and neutral feed is required for PIR sensors. For best results mount near a door or main entryway.
Main Features:
- Corner Mounting
- 360° sensor
- Adjustable LUX level
- Adjustable Duration
Technical Specification:
- Range: 12 meters
- Material: ABS Plastic
- Detection Zone: 360°
- Rating: IP44
- Max Wattage: 1000W Incandescent & 300W Fluorescent 200W LED
- Capacity: 8 lamps Max.
- Time on adjustable 5 sec - 5 min
Specification Sheet
1 Year Guarantee Included
