Description

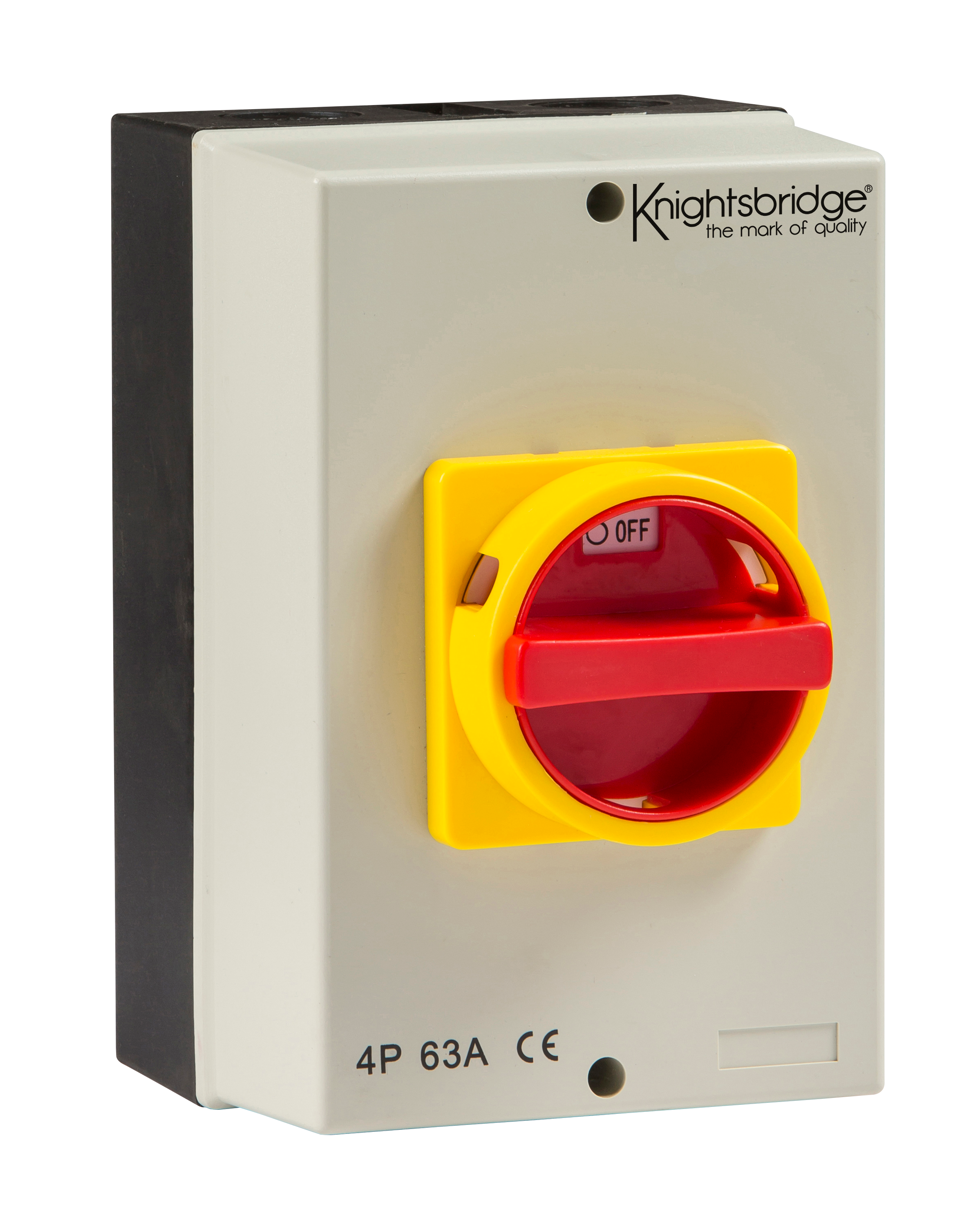

The IN0027, 63 Amp 4 Pole AC 230-415V(Single Phase/Three Phase) Rotary Isolator Switch by KnightsBridge is generally used to isolate power in commercial and industrial applications such as in factories to isolate conveyor belts, in kitchens to isolate fryers and cookers and on farms to isolate meal bins etc.
Ideal for both Indoor & Outdoor use due to its IP65 Rating (Dust Tight and protected against Water Jets).
20-25mm Knockouts make cable access easy.
Handy Locking Mechanism while off keeps it safe from Children or Un-Authorised access.
Switch interlocks with lid to prevent opening whilst in on position.
Includes earth terminals.
Comes with a High Visibility Red/Yellow Handle.
Complies to the latest relevant safety standards - IEC60947-1 & 3 EN60947 VDE 0660-107.
Technical Specification:
- Dimensions: 175mm (Height) x 115mm (Width) x 100mm (Depth) - 135mm (Total Depth)
- Fixing Centre: 90 x 90mm
- Maximum Rated Voltage: 600V
- Resistance to Surge Pulse Voltage: 6KV
- Class: Class I
- Number of Poles: 4
- Earth Connections: 2
- Lock Facility: Yes (Padlock not supplied)
- Cover Interlock: Yes in ON position
- Construction: ABS/Polycarbonate
- IP: IP65
- Cable Entry/Knockouts: 2 x 20/25mm Top. 2 x 20/25mm Bottom
- Manufactured & Tested to: IEC60947-1 & 3 EN60947 VDE 0660-107
Comes with a 1 Year Manufacturer's Warranty
Specification Sheet
This item is usually wired using Hi-Tuff or SWA cable.
