Description

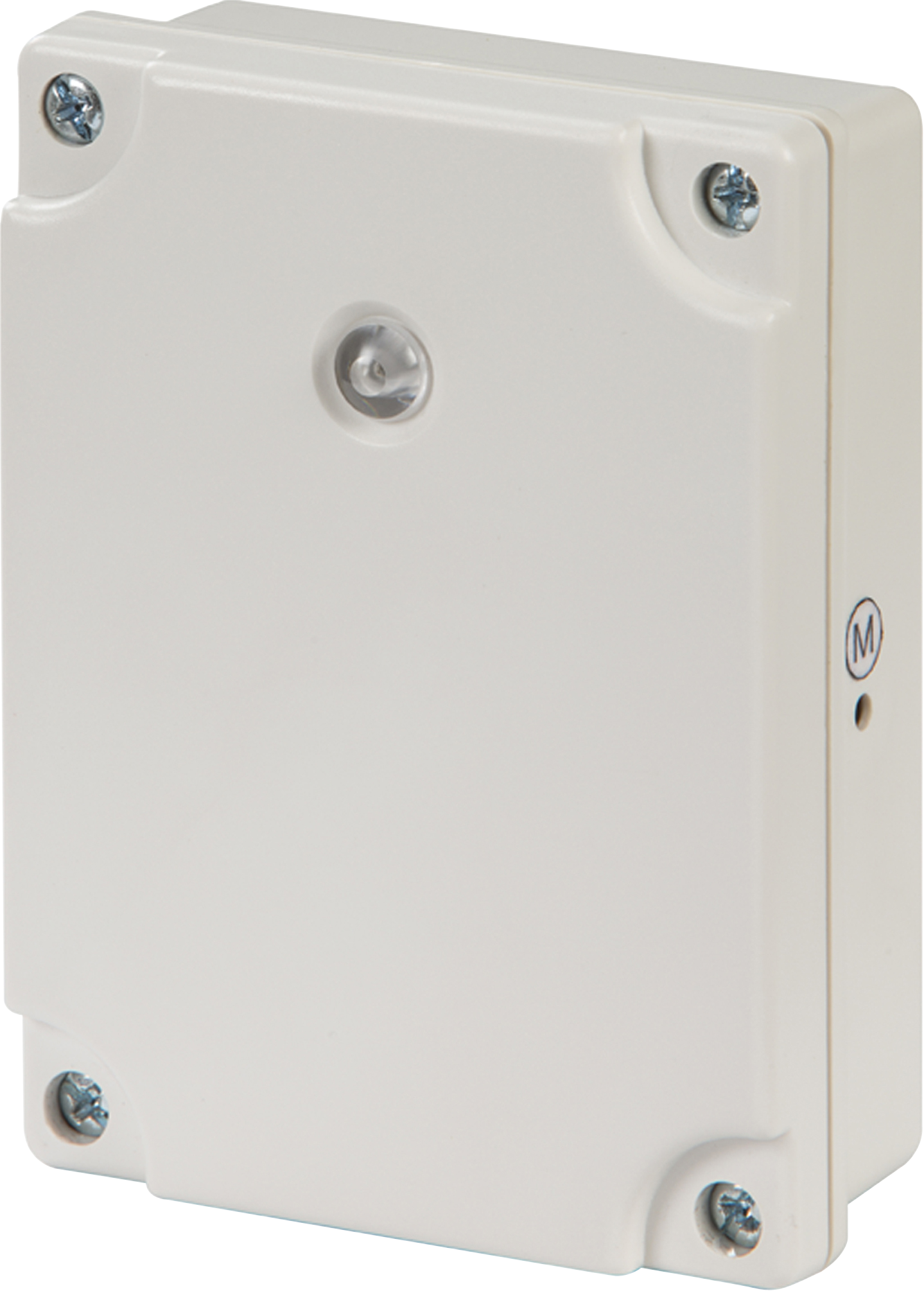

230V LED Compatible Light Sensitive Sensor or Twilight Photo Cell is Ideal to act as a Indoor or Outdoor Timer for Security, Garden and Flood Lighting after dark. This standalone sensor is suitable for Incandescent, Fluorescent and LED Lighting.
This module features a selectable cutoff period, operating for 2, 4, 6, or 8 hours after dusk.
This premium lighting control contains a reliable photocell sensor with integral ambient light memory function. It is IP55 rated, suitable for outdoor use for accurate light sensing, and is easy to install.
It may be adjusted to operate at your chosen light level from as low as 3 lux to a light level as high as 1000 lux, and is compatible with circuit loads up to 1800W Incandescent/ 800W Fluorescent/inductive and 200W LED.
Main Features:
IP55 rated for outdoor use
Photocell sensor module with programmable functions
Can be set to run for 2-8 hours after activation
Adjustable light level activation
Ideal for security, garden, and display lighting
Technical Specification:
Product Weight: 0.16Kg
Overall Dimensions: Length 105mm. Width 79mm. Depth 36mm
Finishes Available: White
Recommended Product Location: Indoor/Outdoor
Fixing Centres: 70mm
Operating Type: Photocell
Voltage: 230V AC 50Hz
Maximum Lamp Wattage: 1000Watt Incandescent or 500W Fluorescent 250W LED
Operating Light: Levels Adjustable 3 – 1000lux
Operating Time: Levels User adjustable – Dusk-Dawn – 2,4,6,8 Hours
Class: Class l. Must be Earthed
IP: IP55
Fixing Method: Surface
Main materials: Self-extinguishing Polycarbonate
Cable entry: Rear Entry
Electrical Connections: 20A screw terminals - 4 PIN: N, L, L1, EARTH
This product comes with a 1 Year Warranty from the manufacturer
Wiring Diagram
