Description

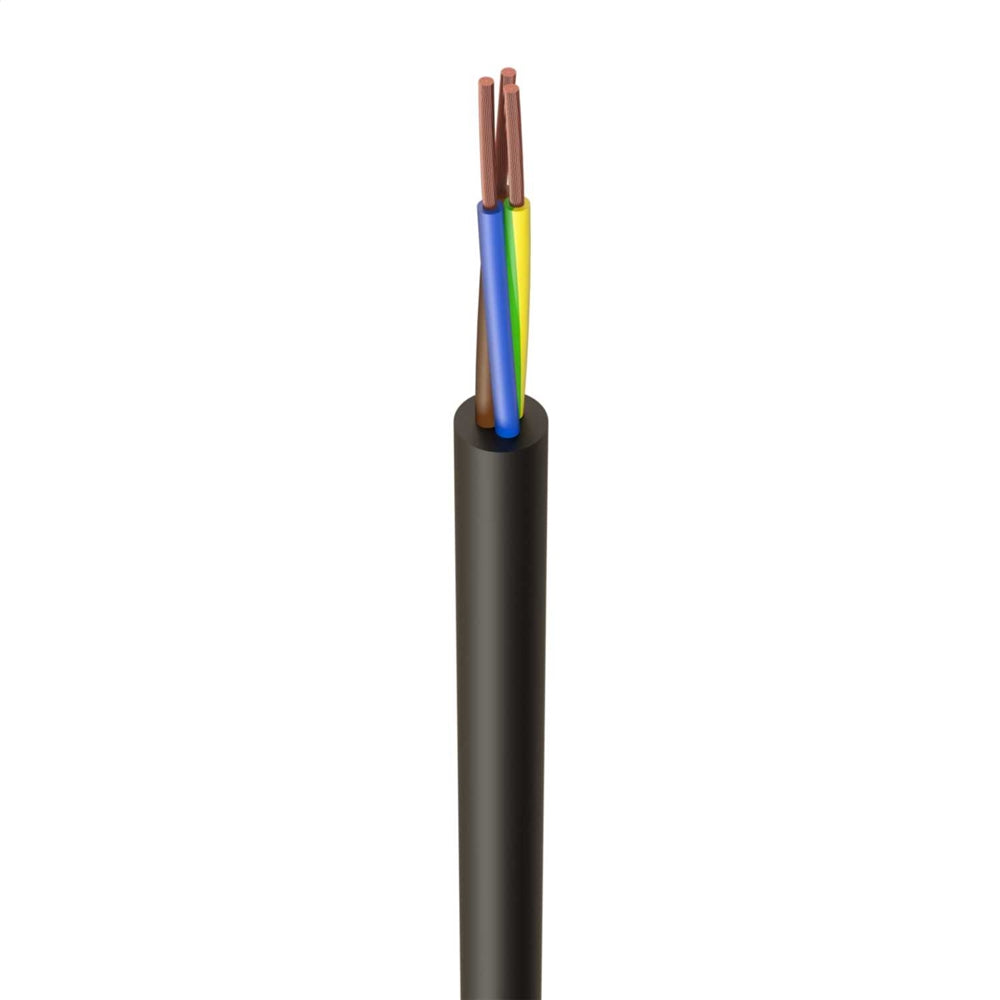

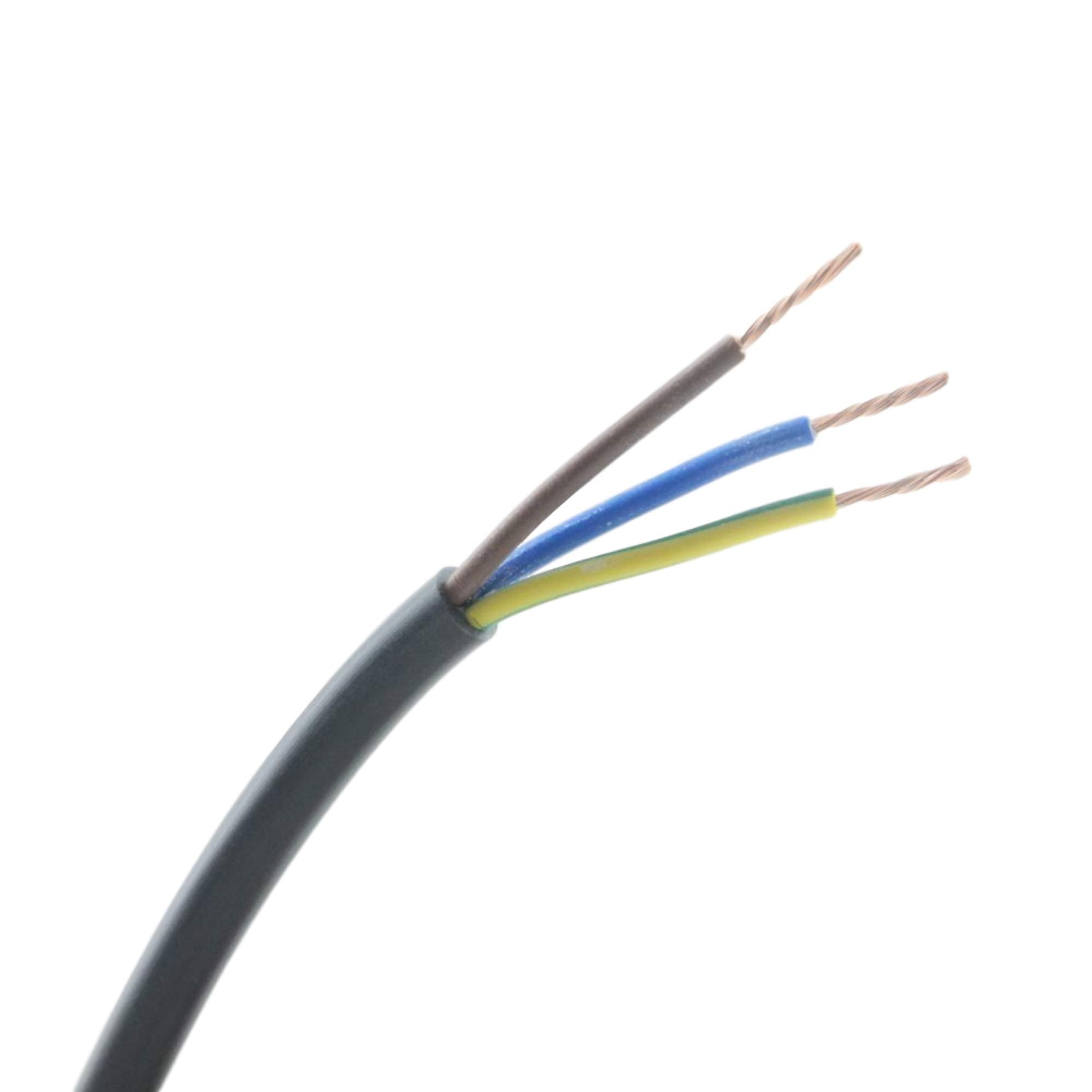

The light-duty 3183Y cable is designed for use in domestic appliances, such as those often found in kitchens and offices, with a voltage rating of 300/500V. It is suitable for use with ordinary duty portable appliances such as radios, table lamps and office equipment where the potential for mechanical stresses and mechanical damage is low.
The 3183Y range is manufactured in accordance with BS EN 50525-2-11 and European harmonised standard H05VV-F (often misspelled as HO5VVF). Outside of Europe, the H05VVF cable is often called NYMHY cable.
Our 3183Y cables H05VVF are BASEC-approved.
Technical Specification:
Voltage: 300/500V
Conductor: Class 5 Flexible Stranded Copper
Insultation: Arctic Grade PVC (Polyvinyl Chloride)
Outer Sheath: Arctic Grade PVC (Polyvinyl Chloride)
Cores: 3
Cross-Sectional Area (m²): 1.5
Thickness Of Insulation (mm): 0.7
Thickness of Sheath (mm): 0.9
Overall Diameter (mm): 8.1
Weight (kg): 16.3
Sheath Colour: Yellow
Length: 100m
Weight: 10.8Kg
