1 Gang Programmable Security Light Switch

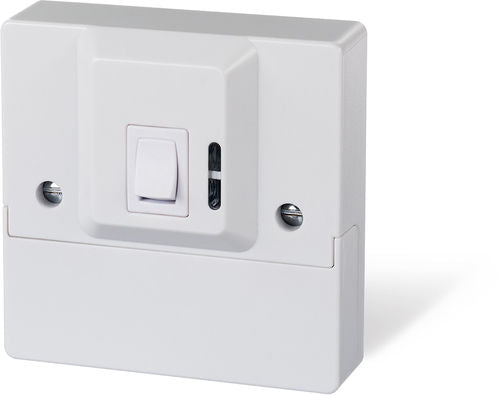

The TimeGuard ZV210 Single Gang Programmable Security Light Switch is an ideal direct replacement for an existing wall switch.

This wall switch will automatically turn on lights when it gets dark and can be programmed to turn OFF again at pre-set times between 1 and 8 hours later.

Easy to install and operate and can also be used as a normal on and off switch.

Main Features:

• Permissible Switching Loads: 2000W Halogen, 250W Fluorescent (Low-loss or Electronic ballast), 250W CFL (Electronic ballast), 400W LED lighting
• Turns Lights On & Off Automatically when it gets dark
• Programmable to turn lights off at pre-set times between 1 to 8 Hours
• Replaces existing One or Two Way light switches - 2 wire
• Manual ON/OFF Switch
• Concealed front panel with retaining screw
• Supplied with 9V battery
• Low battery alert LED indication
• Adjustable lux (light level) setting

Technical Specification:

• Mounting Height: 1.1m for optimum detection range
• Operating Temperature: -20ºC to +40ºC
• Switch Type - Single/2Way
• Filament Load - 300W
• Fluorescent & Low Energy Lighting - Up to 85W with adaptor FLA01
• Stand-alone LED Rating - 20W
• Weatherproof Rating: IP40
• Light Level Sensing - Yes
• Light on Time - Adjustable
• Concealed Front Panel - Yes
• EC Directives - Conforms to Latest Directives
• Dimensions (W x H x D):
  • Height Closed : 86mm x 86mm x 22mm
  • Height Open: 86mm x 122mm x 22mm

Note: FLA01 strip light adaptor will allow operation with up to 85W of fluorescent or low energy lamps.

This product requires to be permanently charged which is achieved through the switched Live. As such, some LED and CFL lamps may glow or flash whilst this product is in the ‘OFF’ status. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic Switch Load Controller to the circuit.
The LED switching capabilities of this product can be increased up to 200W by the addition of the Timeguard ZV900 Automatic Switch Load Controller. The ZV900 is sold separately.

ZV210 Instruction Manual

Comes with a 3 Year Manufacturer's Warranty
