Description

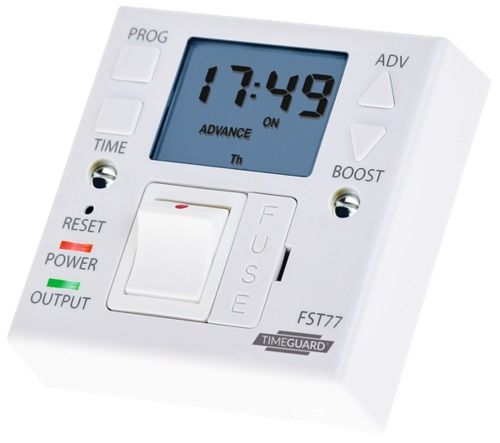

Timeguard FST77 Supplymaster 7 Day Fused Spur Timer
Timeguard's new look Fused Spur Time switches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster Range.
- Up to 4 ON and OFF programmes available (5 day plus 2 or 7 day programmes) giving up to 28 ON and OFF programmes per week.
- Suitable for use with up to 3kW immersion heaters.
- Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (cfls) and 200W LED lighting. Not suitable for discharge lighting.
- Red LED Mains ON and green LED Output indicators for easy viewing.
- Permanent OFF and timed outputs available.
- Easy view 24 hour digital clock/timer display.
- Optional 1 or 2 hour boost facility.
- Automatic summer/winter time changeover.
- Self-cancelling override.
- Shortest switching time 1 minute.
- Programme advance and review options.
- BS1362 fuse replaceable from front.
- Double pole switch for ease of control.
- Integral memory back up battery retains programmes in event of power failure.
- Ideal for replacing single gang connection unit or fixed appliance outlets.
- Fits a single gang wall box min. 25mm deep.
Technical Specification:
- Timer Mode: 7 Day
- Setting Type: Digital
- Operating Voltage: 230V AC
- Switch Rating: 230V AC, 13A Resistive(3kW)
- Operating Temperature: 0 to 40°C
- Battery Back-Up: 4 Weeks rechargeable
- EC Directives: Conforms to Latest Directives
- Dimensions (W x H x D): 85mm x 85mm x 38mm
Comes with a 5 Year Warranty
