Description

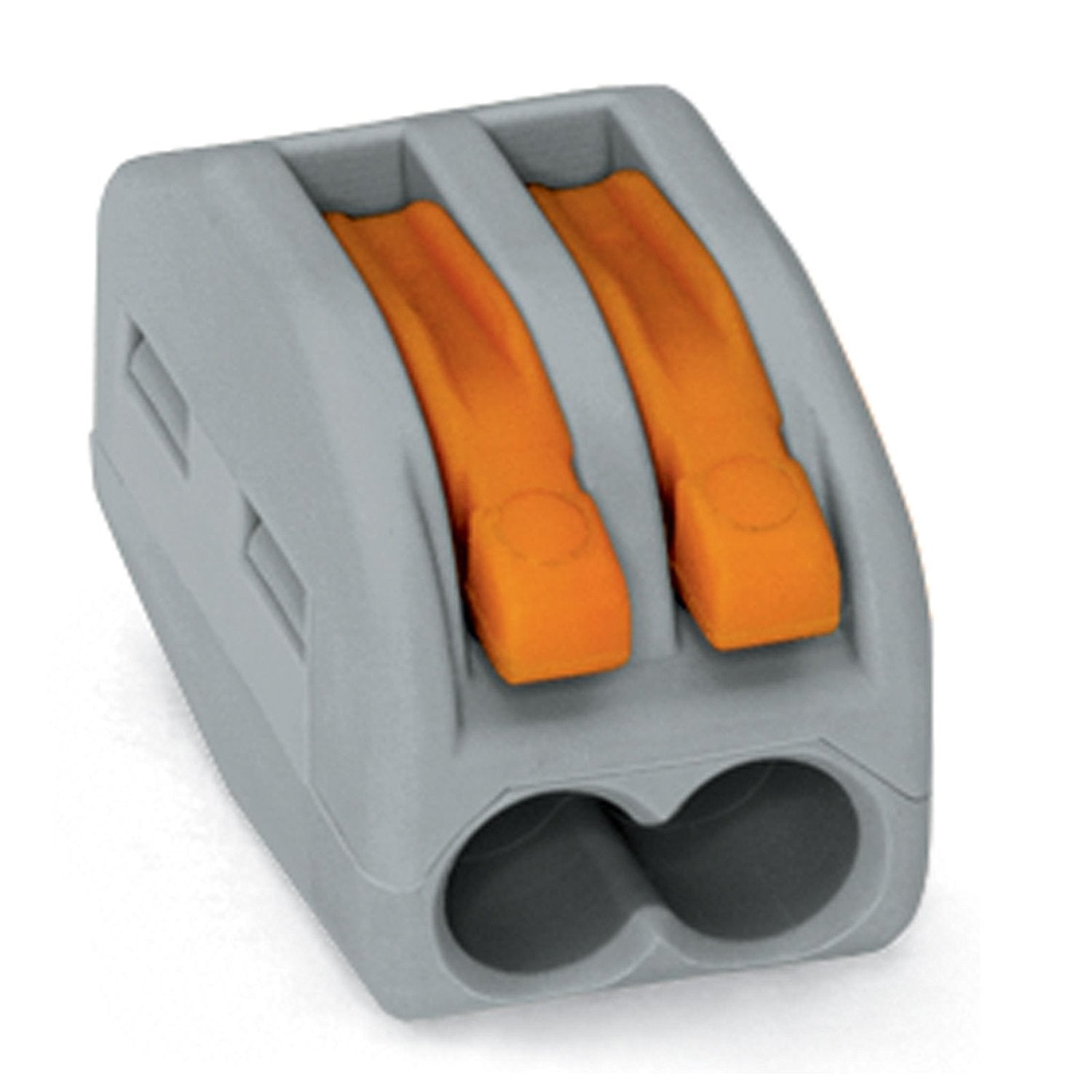

Classic Splicing Connector; for all conductor types; max. 4 mm²; 2-conductor; with levers; grey housing; Surrounding air temperature: max 40°C; 2,50 mm²; grey
Technical Specification:
Colour: Grey
Flammability Class per UL94: V0
Fire Load: 0.079MJ
Actuator Colour: Orange
Weight: 3.1g

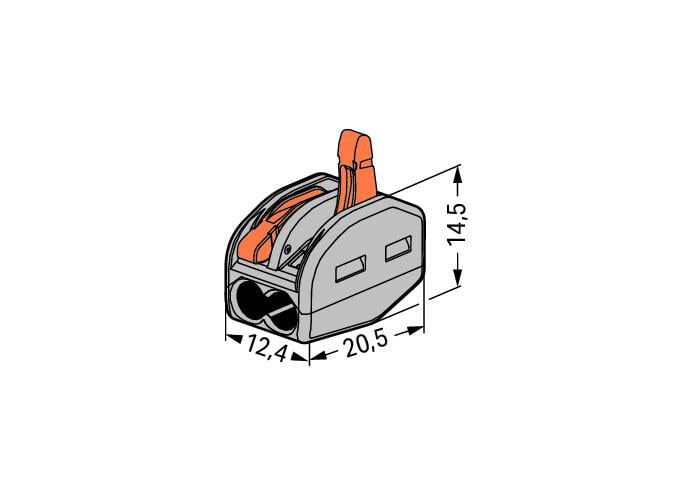

Width: 12.4 mm / 0.488 inches
Height: 14.5 mm / 0.571 inches
Depth: 20.5 mm / 0.807 inches
Safety Information: In grounded power lines
Continuous Operating Temperature: Up to 85°C
Ambient Temperature (Operation): +40 °C
Electrical Data:
Ratings per: EN 60664
Nominal Voltage (II/2): 400V
Rated Surge Voltage (II/2): 4kV
Rated Current: 32A
Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
Connection Data:
Connection Points: 2
Total Number of Potentials: 1
Connection Technology: CAGE CLAMP®
Actuation Type: Lever
Connectable Conductor Materials: Copper
Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
Strip Length: 9 … 10 mm / 0.35 … 0.39 inches
Wiring Direction: Side-entry wiring
Technical Specification:
Pack Size: 50 Pack
Dimensions: Length: 21mm x Height: 15mm
Weight: 0.155Kg
