3 Way Push-In Tooless Wire Connector, 50 Pack

PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 6 mm²; 3-conductor; transparent housing; red cover; Surrounding air temperature: max 60°C; 6,00 mm²; multicoloured.

Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

“Alu-Plus” Contact Paste Advantages:

• Automatically destroys the oxide film during clamping.
• Prevents fresh oxidation at the clamping point.
• Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
• Provides long-term protection against corrosion.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5 mm² = 16 A
4 mm² = 22 A

Technical Specification:
Colour: Multicoloured
Cover Colour: Red
Flammability Class per UL94: V2
Fire Load: 0.115MJ
Weight: 5.8g

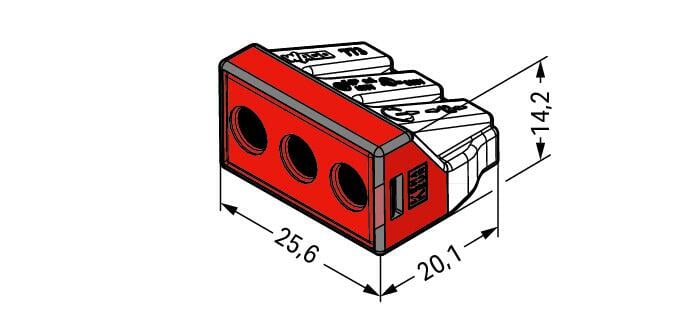

Width: 25.6 mm / 1.008 inches
Height: 14.2 mm / 0.559 inches
Depth: 20.1 mm / 0.791 inches
Safety Information: In grounded power lines
Continuous Operating Temperature: Up to 105°C
Ambient Temperature (Operation): +60 °C

Electrical Data:
Ratings per: IEC/EN 60664-1
Nominal Voltage (II/2): 400V
Rated Surge Voltage (II/2): 4kV
Rated Current: 41A
Legend (Ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection Data:
Connection Points: 3
Total Number of Potentials: 1
Connection Technology: PUSH WIRE®
Actuation Type: Push-in
Connectable Conductor Materials: Copper, Aluminum
Solid Conductor: 2.5 … 6 mm² / 14 … 10 AWG
Stranded Conductor: 2.5 … 6 mm² / 14 … 10 AWG
Strip Length: 12 … 13 mm / 0.47 … 0.51 inches
Wiring Direction: Side-entry wiring

Technical Specification:

Pack Size: 50 Pack
