Description

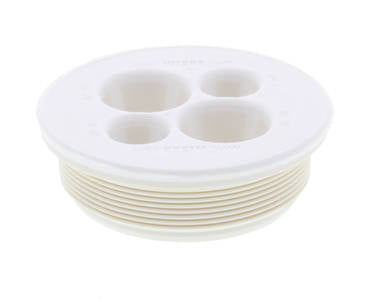

This is the Wiska 10108617 TKS 32 Membrane cable entry with strain relief, ideal for cable entries 2 x 7-12mm + 2 x 4-8mm. The TKS 32- is a new and innovative solution. It is a membrane with 4 entries giving IP 66 protection and cable retention for quick and easy installation.
Simply push the TKS into the unit, insert cable through the membrane and complete installation. Suitable for 16 or 25 mm tails and 10 or 16 mm earth. Ideal for both internal and external applications, glow wire tested to 960 °C. The flush fitting saves on space, and with no additional locknut you also save on time and money
Wiska TKS 32 Membrane with 4 Entries - Features:
- Material: Polypropylene
- TKS 32: Amendment 3 / 17th Edition
- Material membrane: TPE
- Temp. range min: -30 °C
- Temp. range max: 80 °C
- Glow wire test: 960 °C
- Protection class: IP66 rated
- Diameter Connection thread D: 32
- Diameter cable diameter min: 4 mm
- Diameter cable diameter max: 12 mm
- External diameter ED: 37 mm
- Total length TL: 12 mm
- Diameter Drilling: 32,5 mm
- Product Color: RAL 9001
- Type: TKS 32
- ETIM-Classification EC000451
- Flammability: UL94-V0
- Ideal for cable entries 2 x 7-12mm + 2 x 4-8mm
