Description
The Wiska 1210/5 Junction Box in grey is ideal for both indoor and outdoor electrical connections.
IP66 Rated Connection Box, protected against dust and powerful water jetting with membrane use, IP67 rated with knockout entry & ESKV cable gland.
The WISKA COMBI with its unmistakeable bellied lid provides the utmost in visual and functional perfection. Now you can install with system AND with style.
Known to save up to 30% on labour costs.
10% more room inside, thanks to the bellied cover

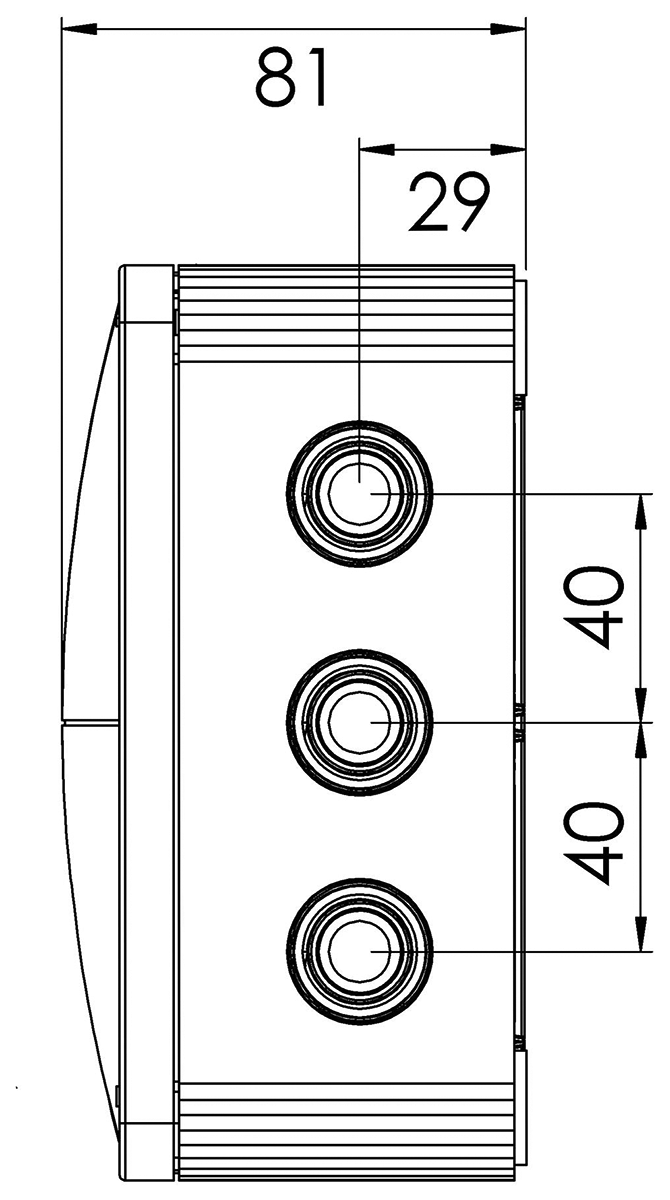

External box dimensions of 160mm x 140mm x 81mm.
Solid Black Impact Resistant Thermoplastic 2 Mold Housing.
Fast Cable Entry via Soft Sealing Membrane. Threaded knockouts. No locknuts necessary.
10 Gland entries capable of taking flexible conduit glands on each side (M20) and M25 knockout
4 entries in the base (M20).
Material made of Polypropylene, reinforced glass fibre; Sealing of thermoplastic elastomere and Terminals/poles of 10 mm²
Captive and Rust-Free, Quick-Release Lid with Plastic Screws closing the box with a Quarter Turn.
Weatherproof, resistant to ultraviolet, shatterproof and impact resistant.
Comes complete with a 5 way loose connector and External Fixing Bracket.
Flame retardant and halogen-free. Protection class to EN 60 529: IP 66. Flame protection: Glow wire test 750 C acc. to EN 60695-2-11
Temperatures during installation: -5°C to 60°C. Temperature range of material: -30°C to 100°C, intermittent up to approx. 120°C. Voltage Rating: 400 V
Comes complete with a 1 year warranty from the manufacture, Wiska.
This product is also available in Black.
