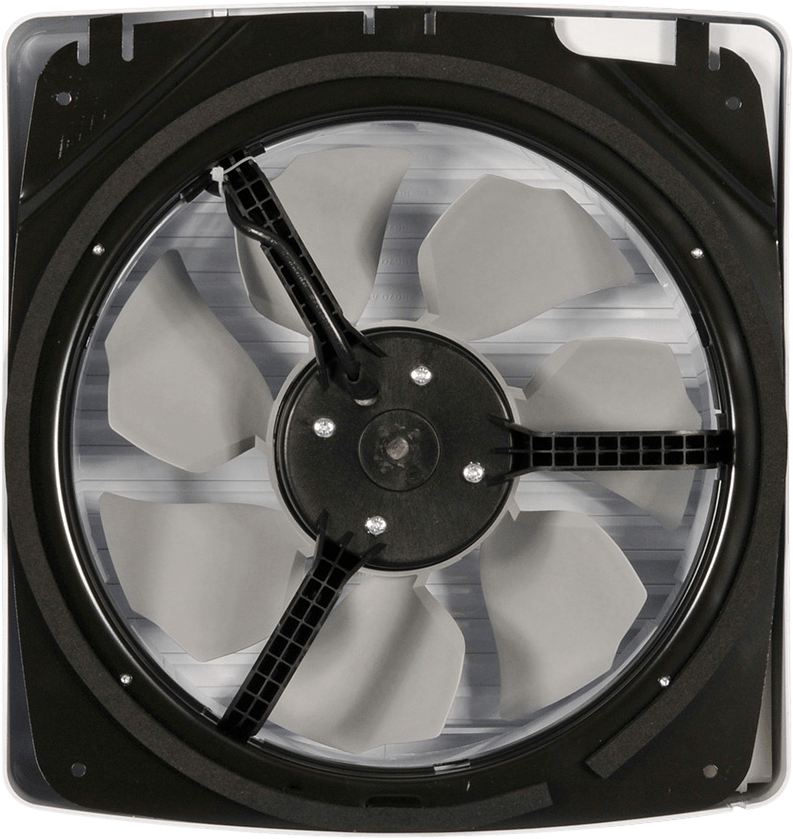

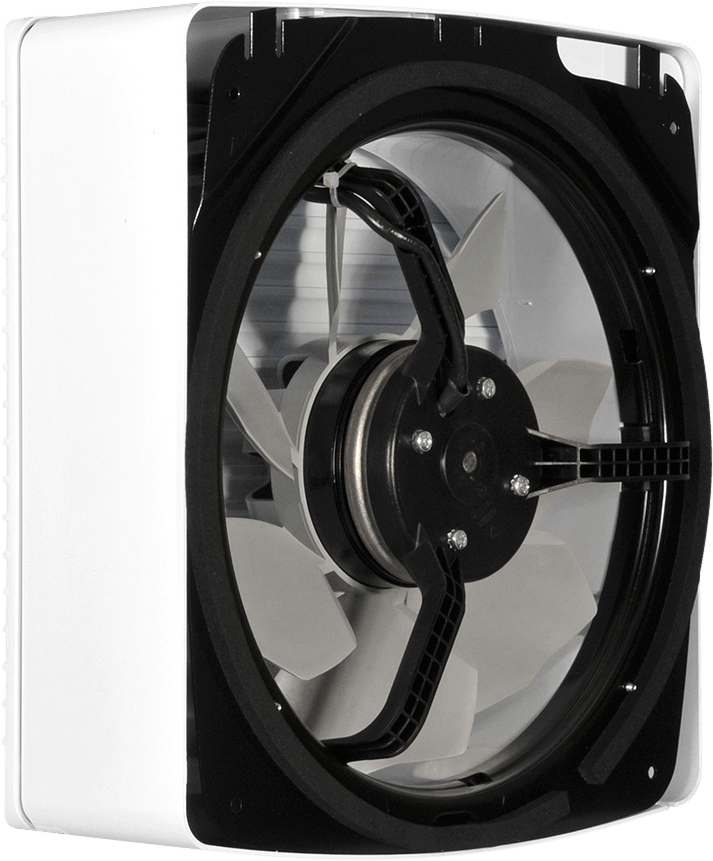

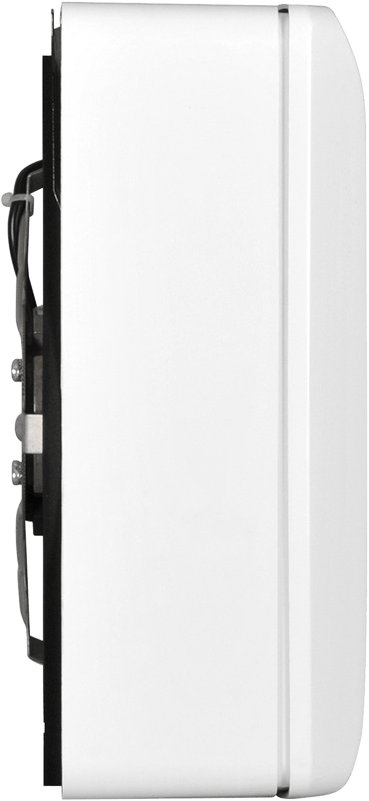

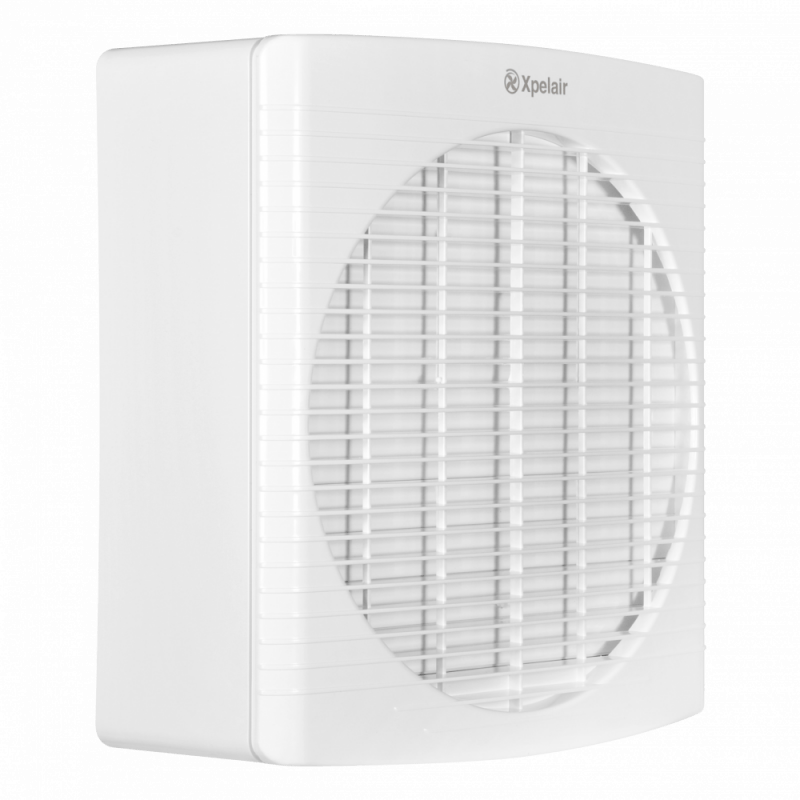

GX9 9" Window & Wall Mounted Extractor Fan

The Xpelair GX9 (89994AW) Two Speed Commercial Window or Wall Mounted Extractor Fans is ideal for use in Pubs, Restaurants, Offices, Kitchens, Factories, Schools and Shops.

This fan has been extensively tried and tested for over 40 years and remains the byword for excellence when referring to commercial window fans. This fan benefits from the technology and design of earlier models and continues to have the same excellent reputation for being totally reliable. It introduces a host of upgrades and refinements to make the range safer, faster to install and easier to clean.

Can be Window mounted as supplied or wall-mounted using an optional wall kit. Suitable for sealed single and double glazed window installations with the longer ladder strips supplied, these fans also feature a safety finger-guard integrated into the housing and window grille.

The GX9 fan is reversible and feature enclosed external rotor motors to provide constant volume outputs, even in gusty conditions. A tamper-proof positive plug and socket assembly provides a means of isolation for service access.

Comes with sealed for life maintenance-free bearings to ensure suitability for running at any angle.

Main Features:

• High-performance axial fan for extract & intake.
• Stylish design and white appearance to complement and blend with modern décor.
• Suitable for single and sealed double glazing windows and panels up to 25mm.
• Balanced external rotor motor and impeller for quiet efficiency.
• Sealed for life maintenance free bearings, suitable for running at any angle.
• Internal fan selector switch sets the fan to intake (1) extract (2) & controller (3).
• Silent Shutter Operation via a thermal actuator.
• Trickle ventilation facility for background ventilation when not in use.
• Clip off front cover for sleek appearance and easy cleaning.

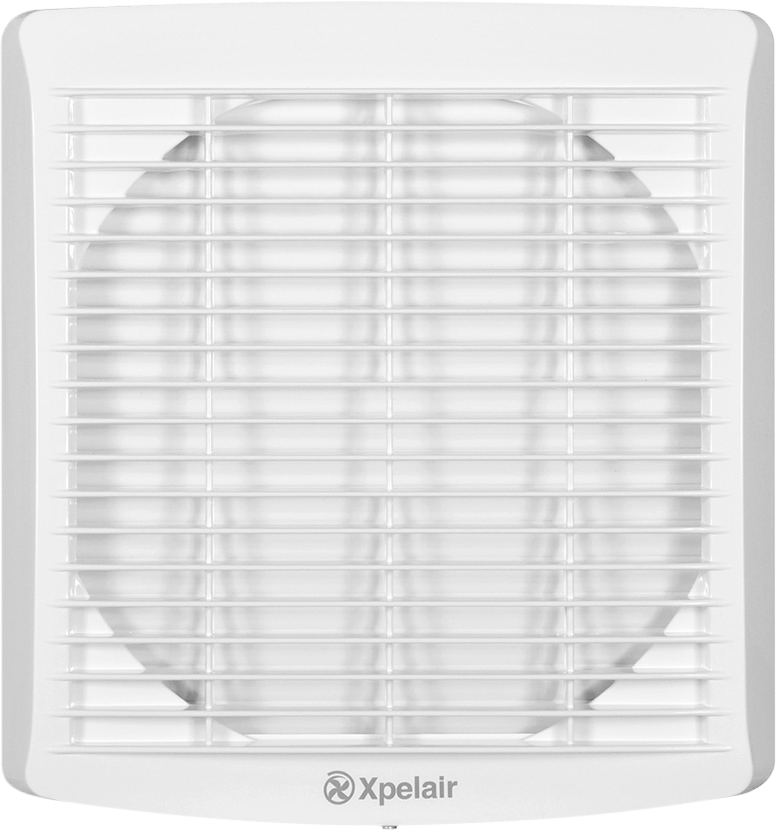

• Finger guarded front grille.
• Totally enclosed motor fitted with thermal cut out requires no maintenance.
• Supplied with longer ladder strips and window fitting kit

Technical Specification

• Performance
• Power usage maximum (W) 220-240V AC 50-60Hz - 41
• Sound pressure level dB(A)@3m - 48 / 50
• Speeds - 1
• Speeds with External Controller - 2
• Extract performance (FID, l/s) - 151 / 177
• Extract performance (FID, m³/h) - 543 / 636
• Hole diameter with wall liner (mm) - 266
• Hole Diameter (mm) - 257
• Intake performance (FID, l/s) - 113 / 125
• Intake performance (FID, m³/h) - 405 / 449
• Features
• Axial - Yes
• Electro-Thermal Shutter - Yes
• Motor Type - AC
• Reversible Intake/Extract - Yes
• Safety Finger Guard - Yes
• Window Kit Supplied - Yes
• Application
• Commercial Ventilation - Yes

GX9 Technical Data Sheet
GX9 Wiring Diagram
GX9 Installation Guide

Comes complete with a 2 Year UK Warranty
